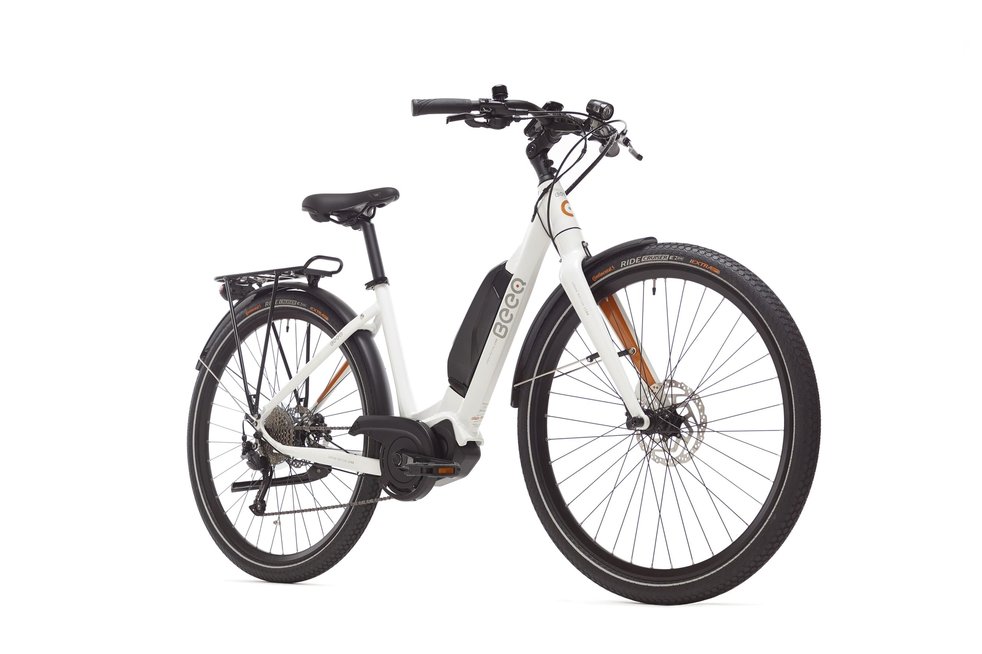

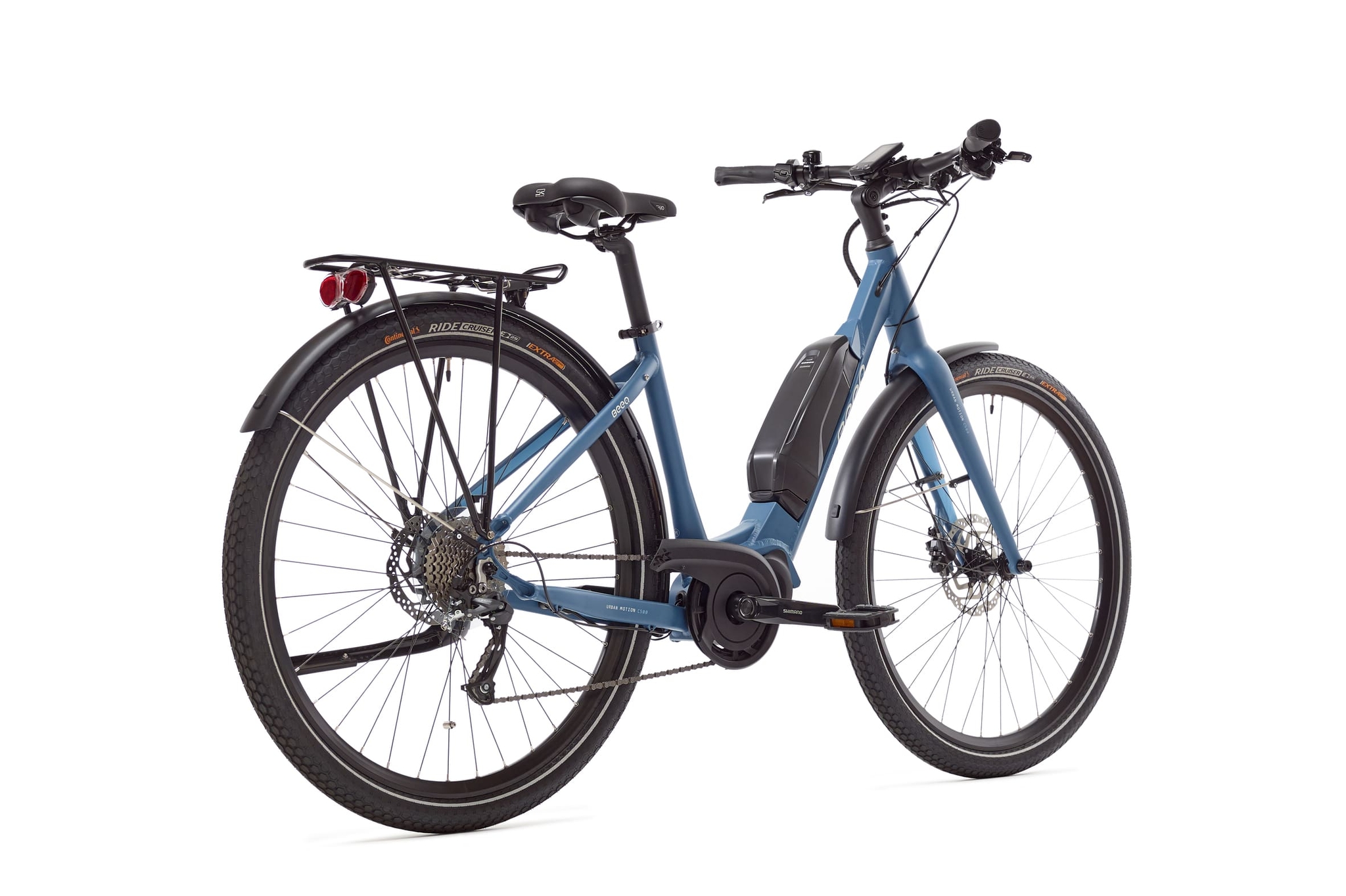

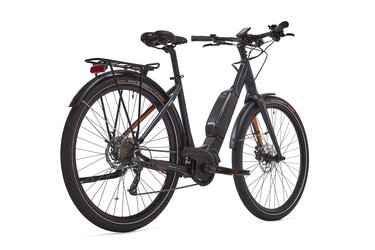

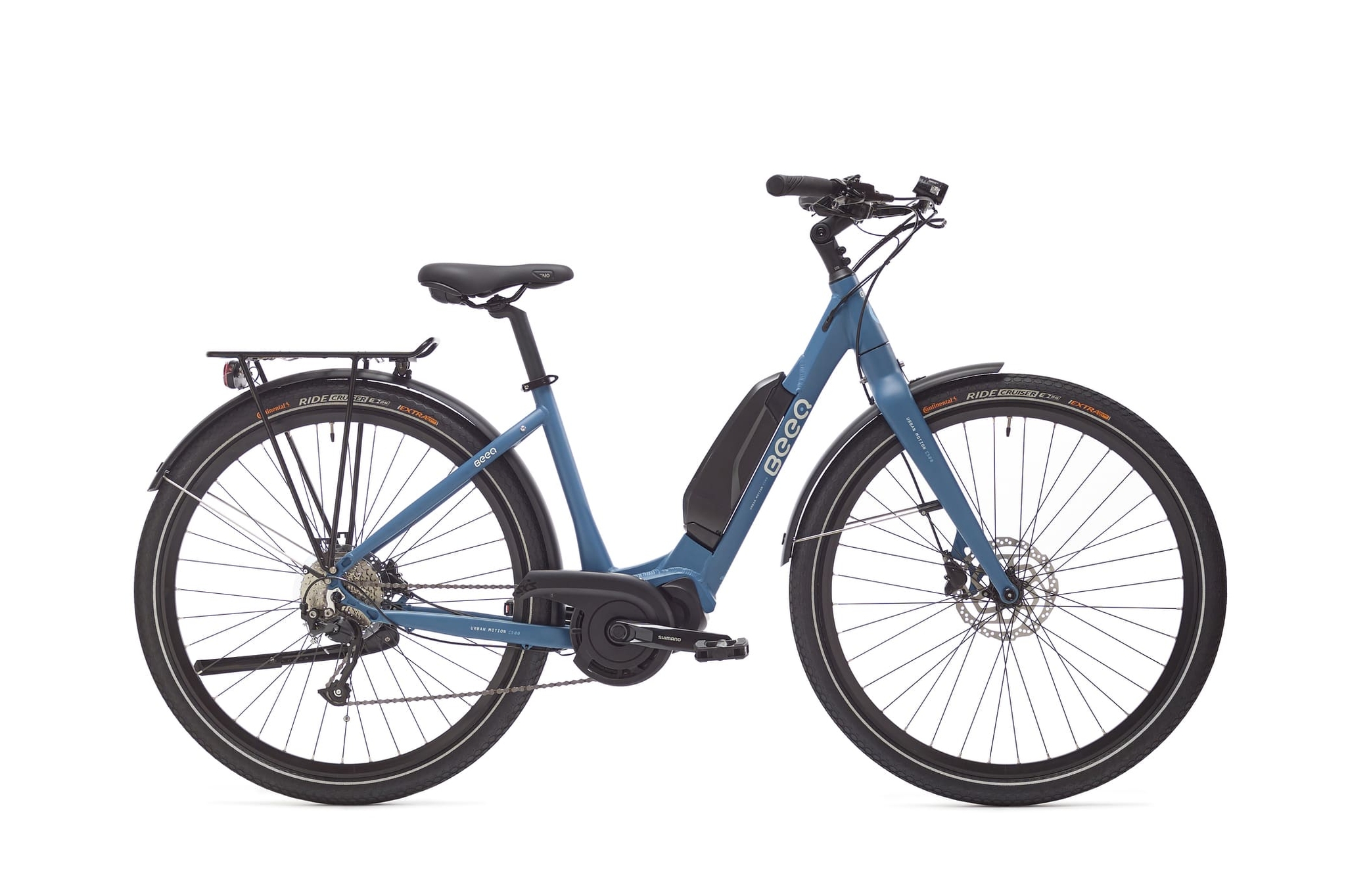

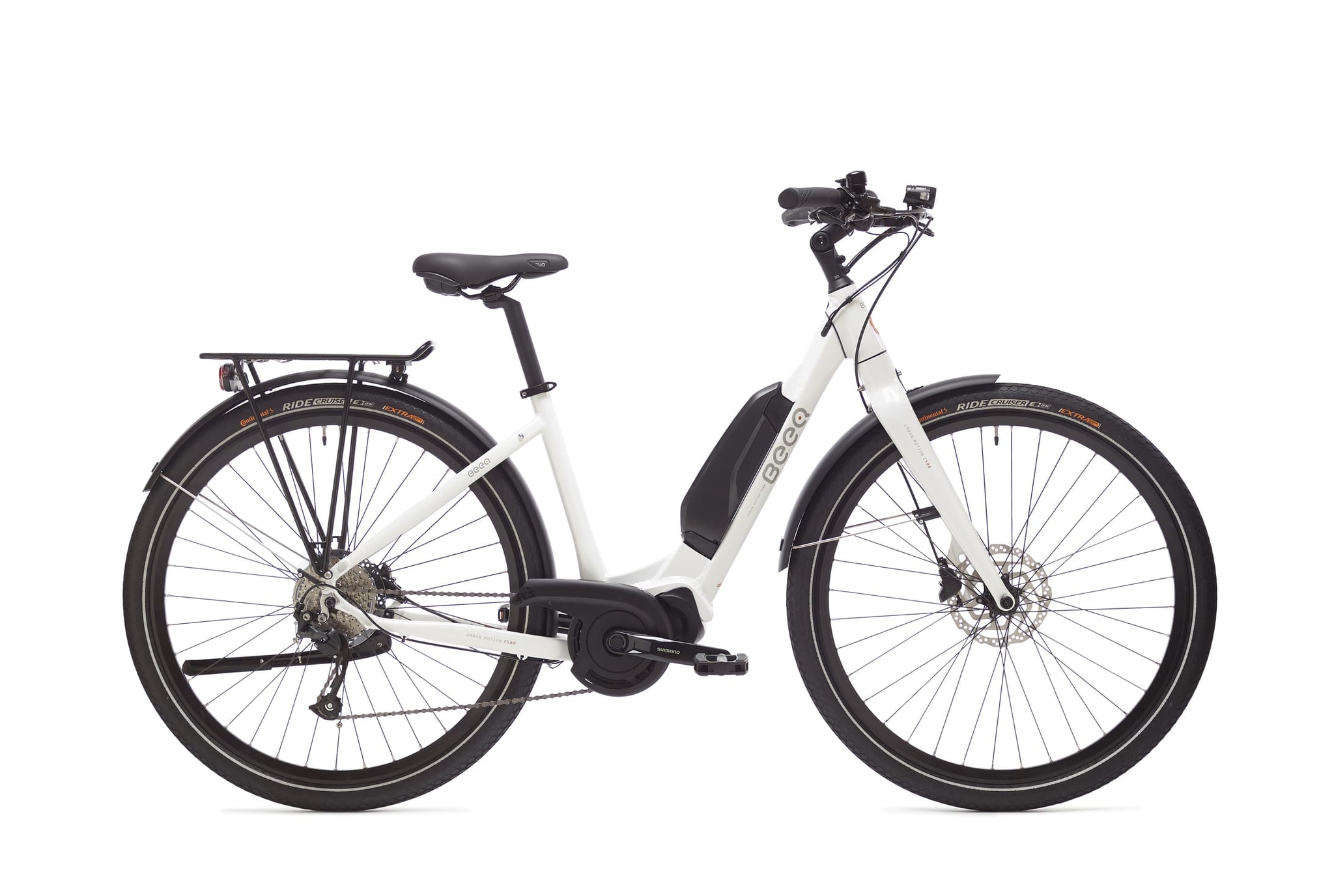

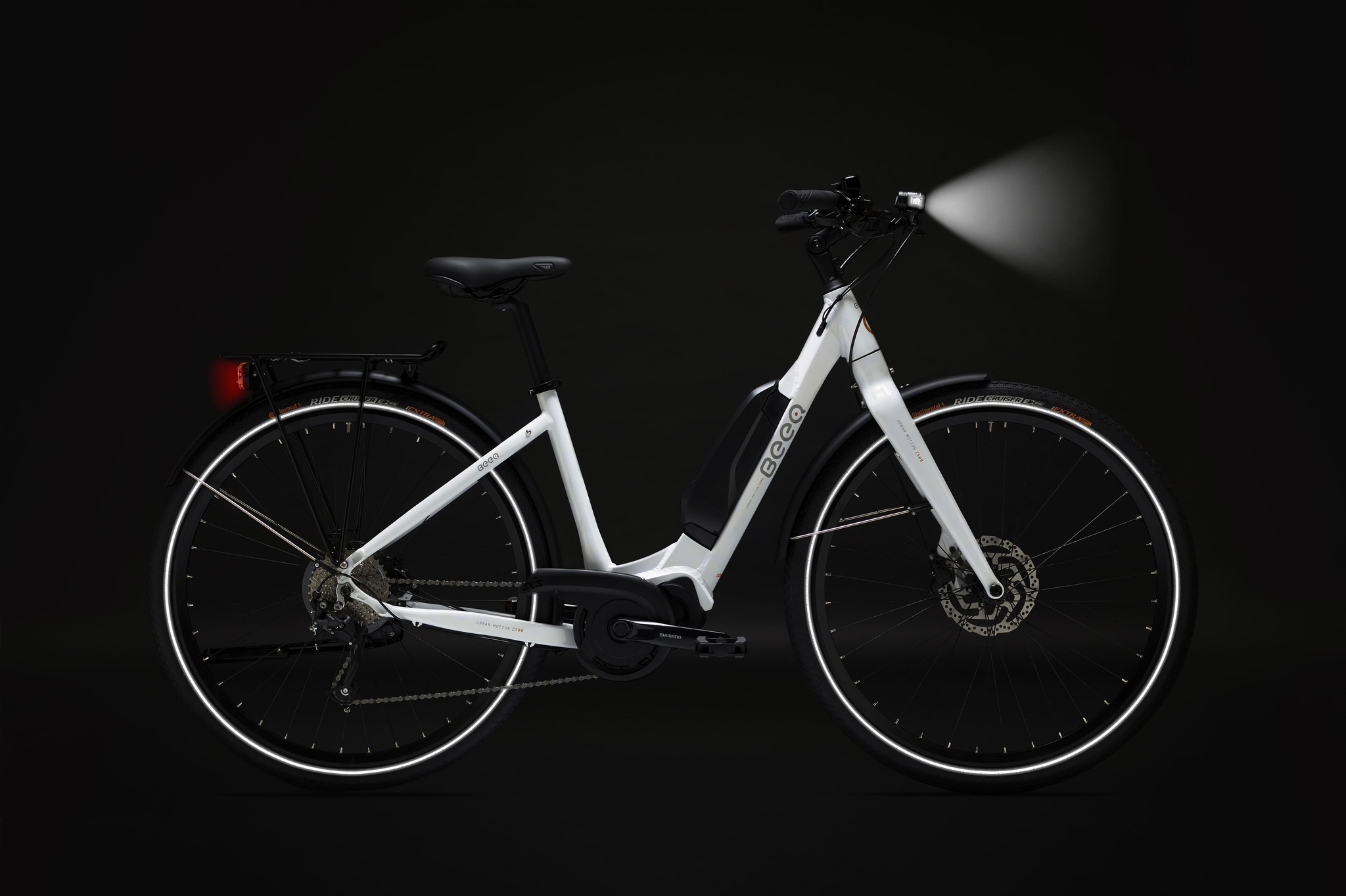

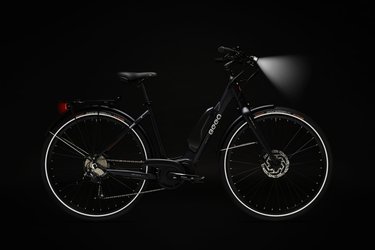

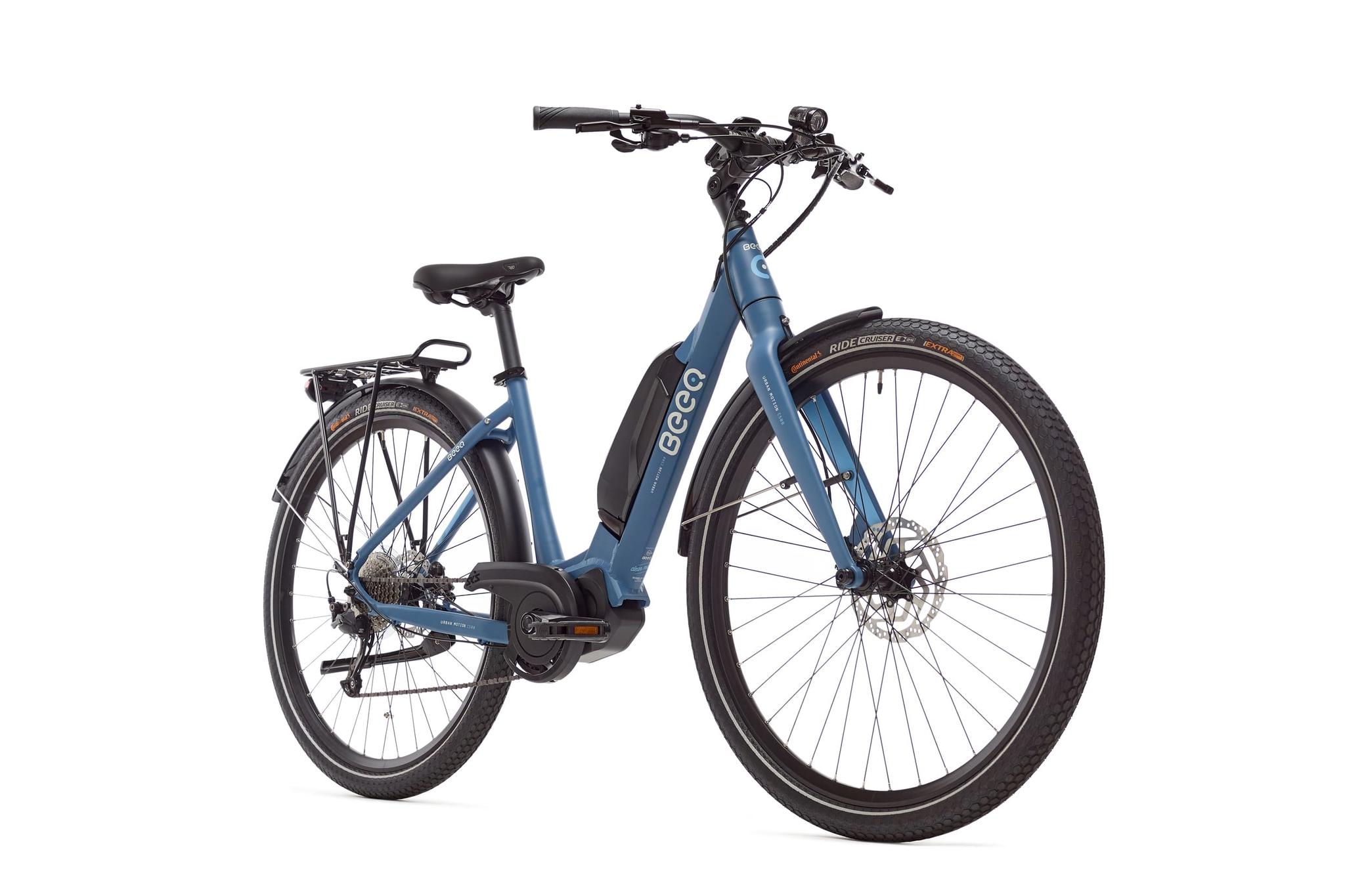

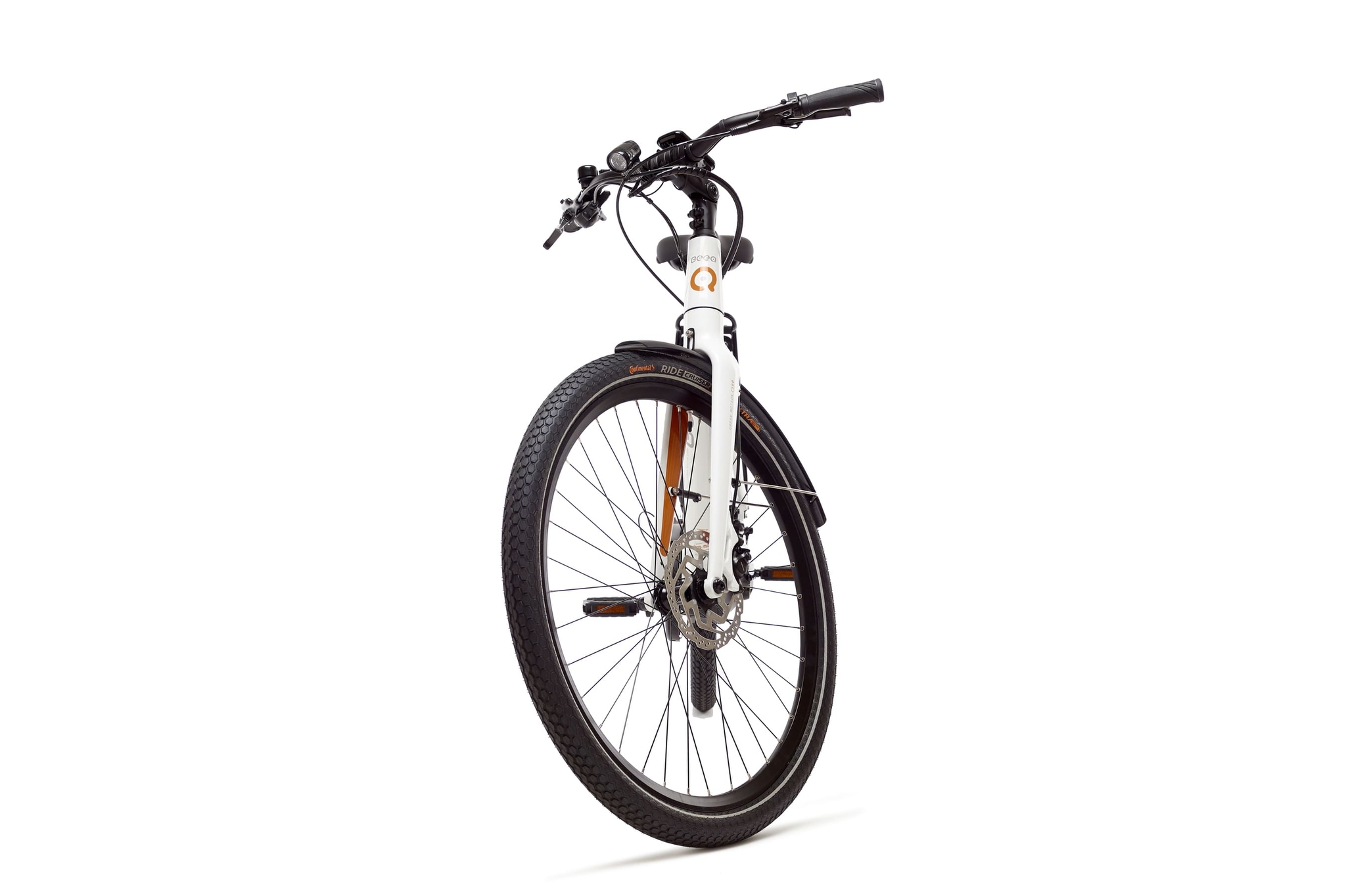

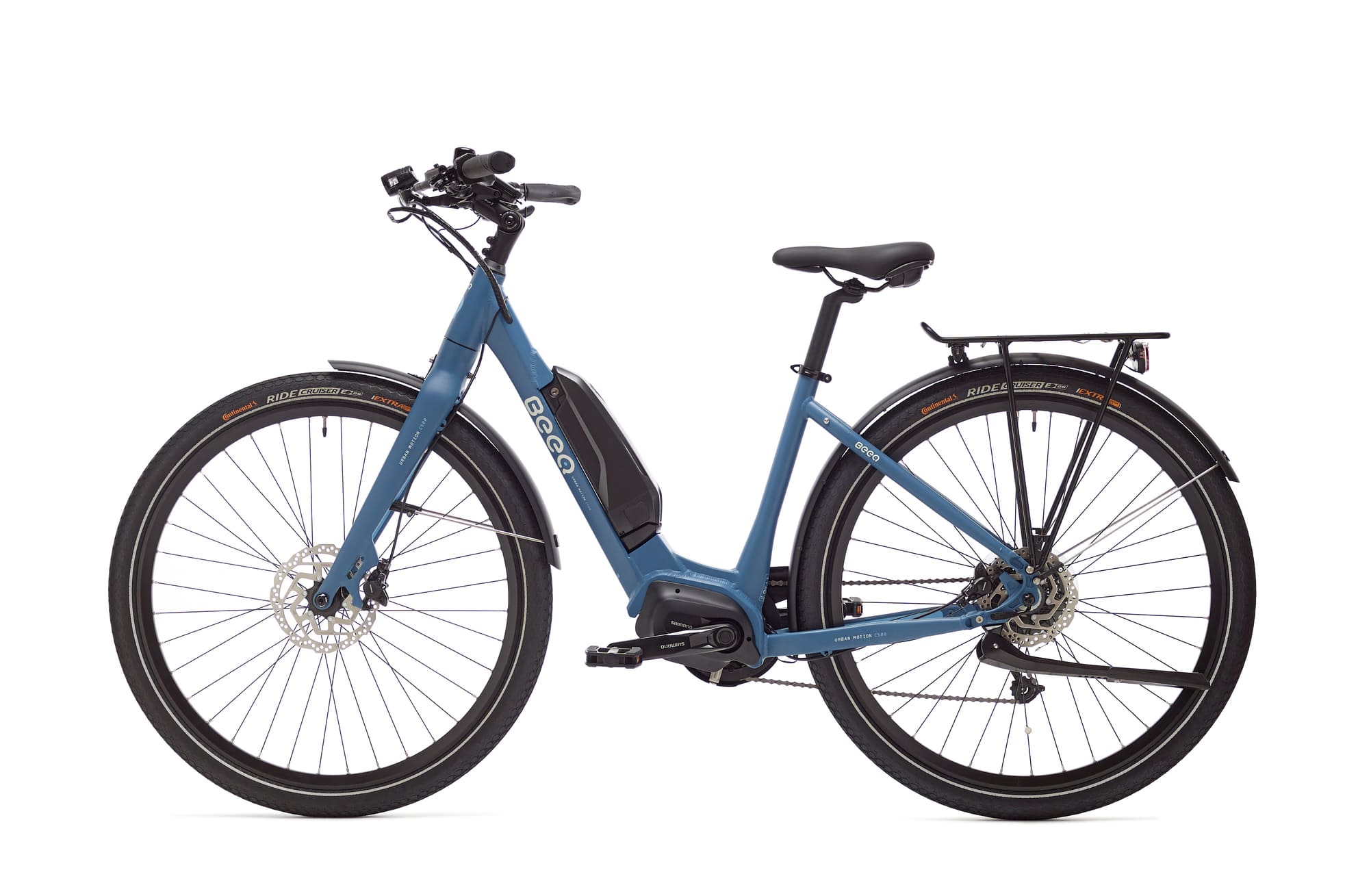

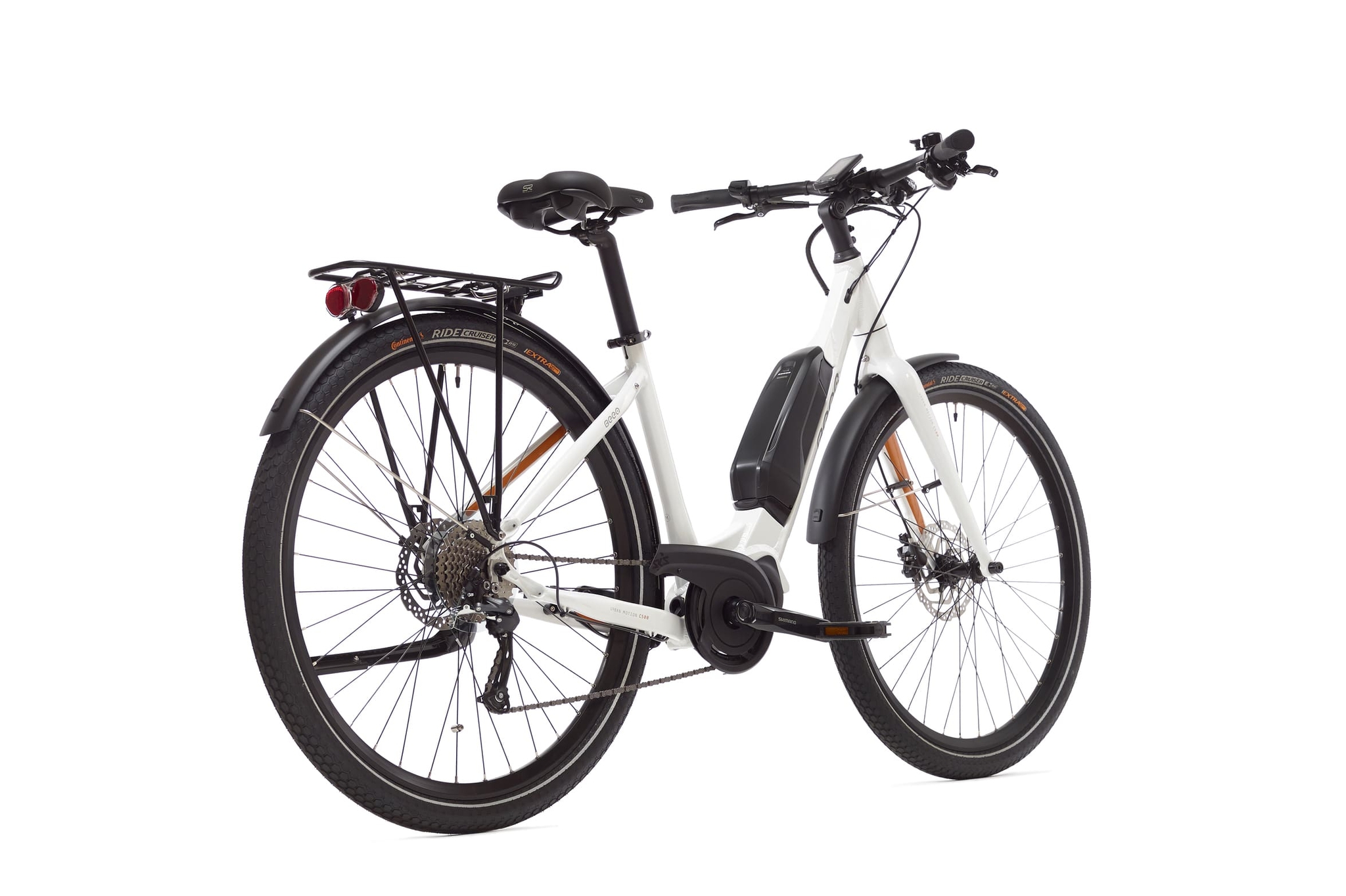

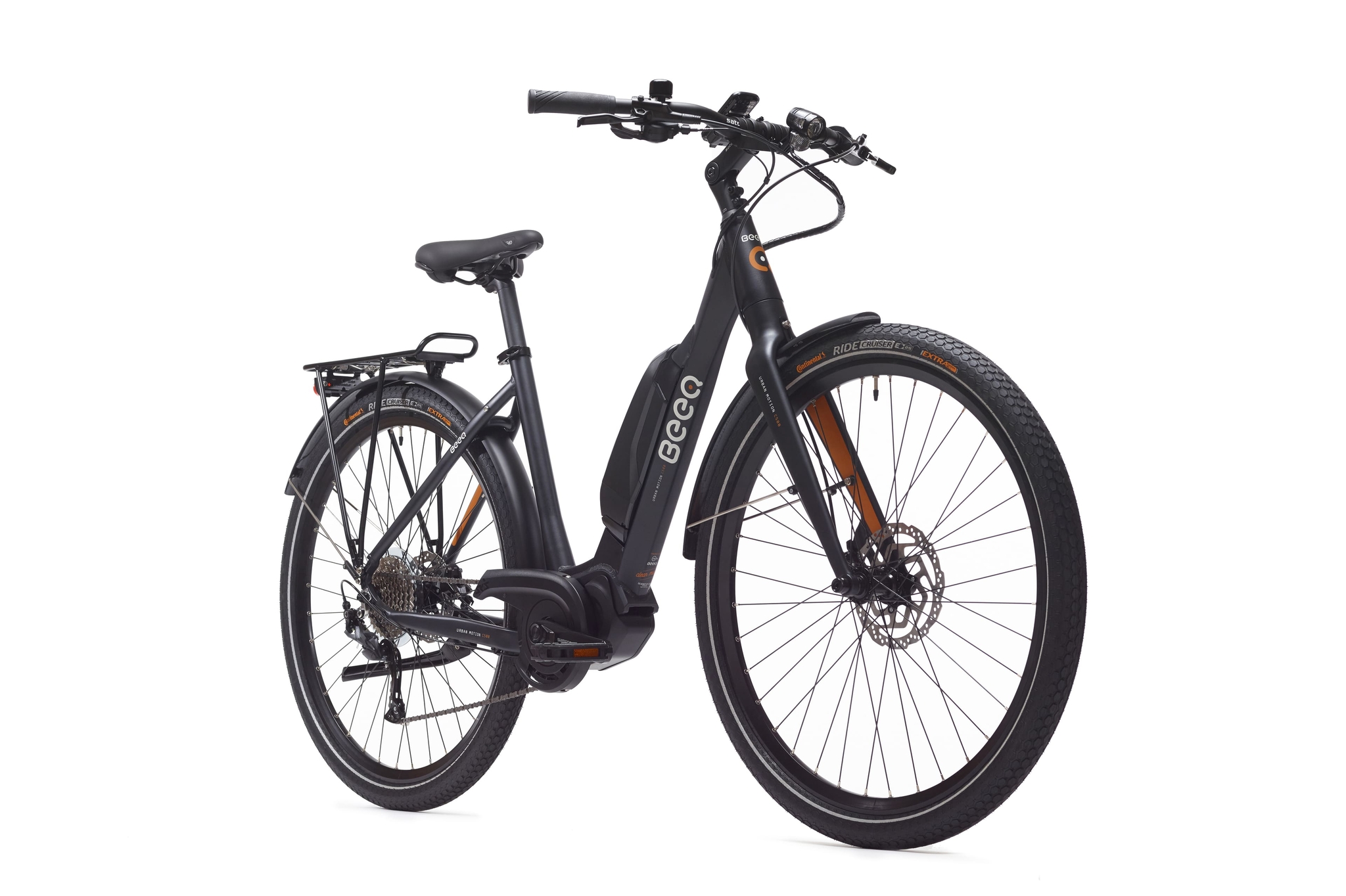

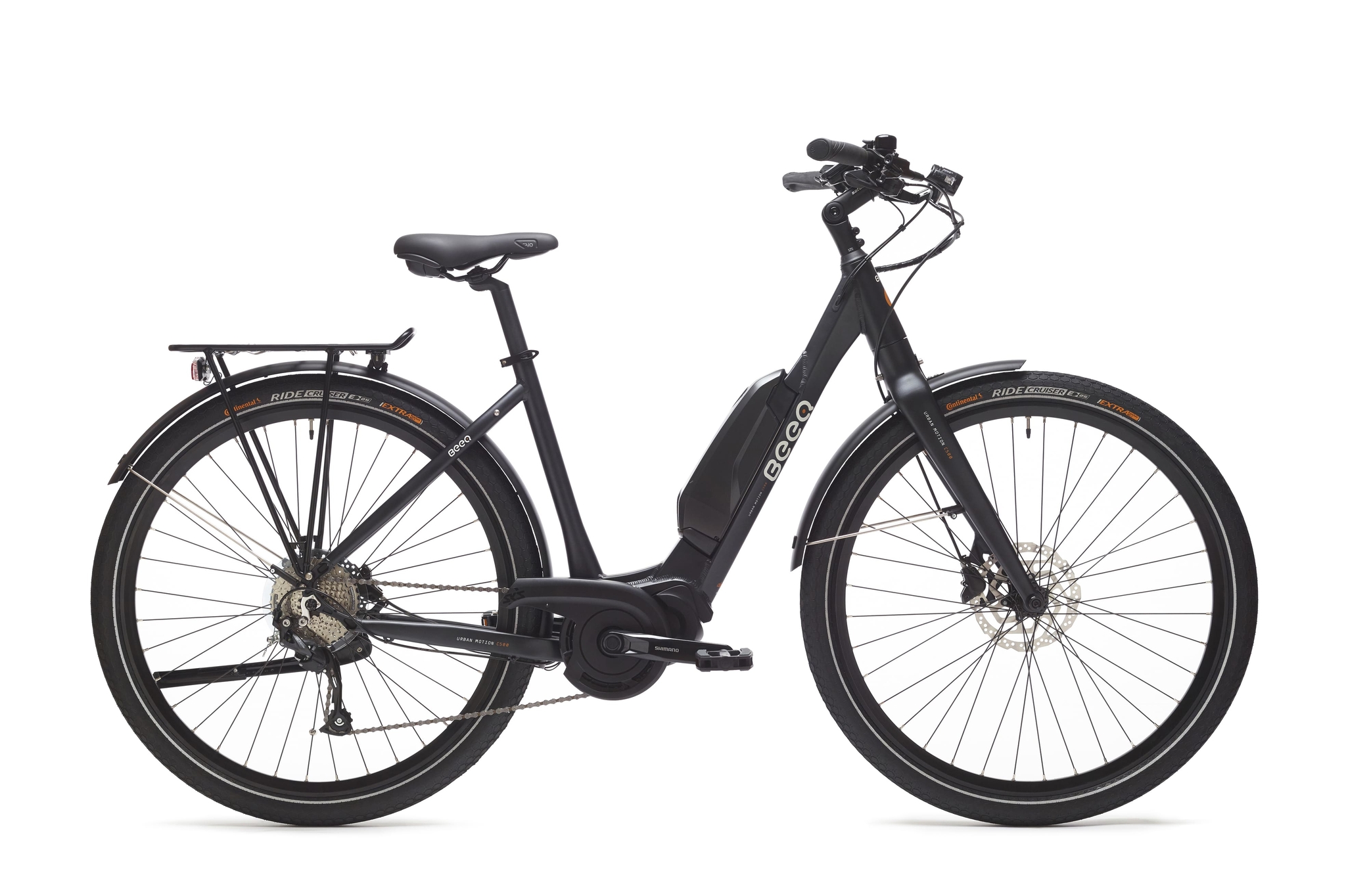

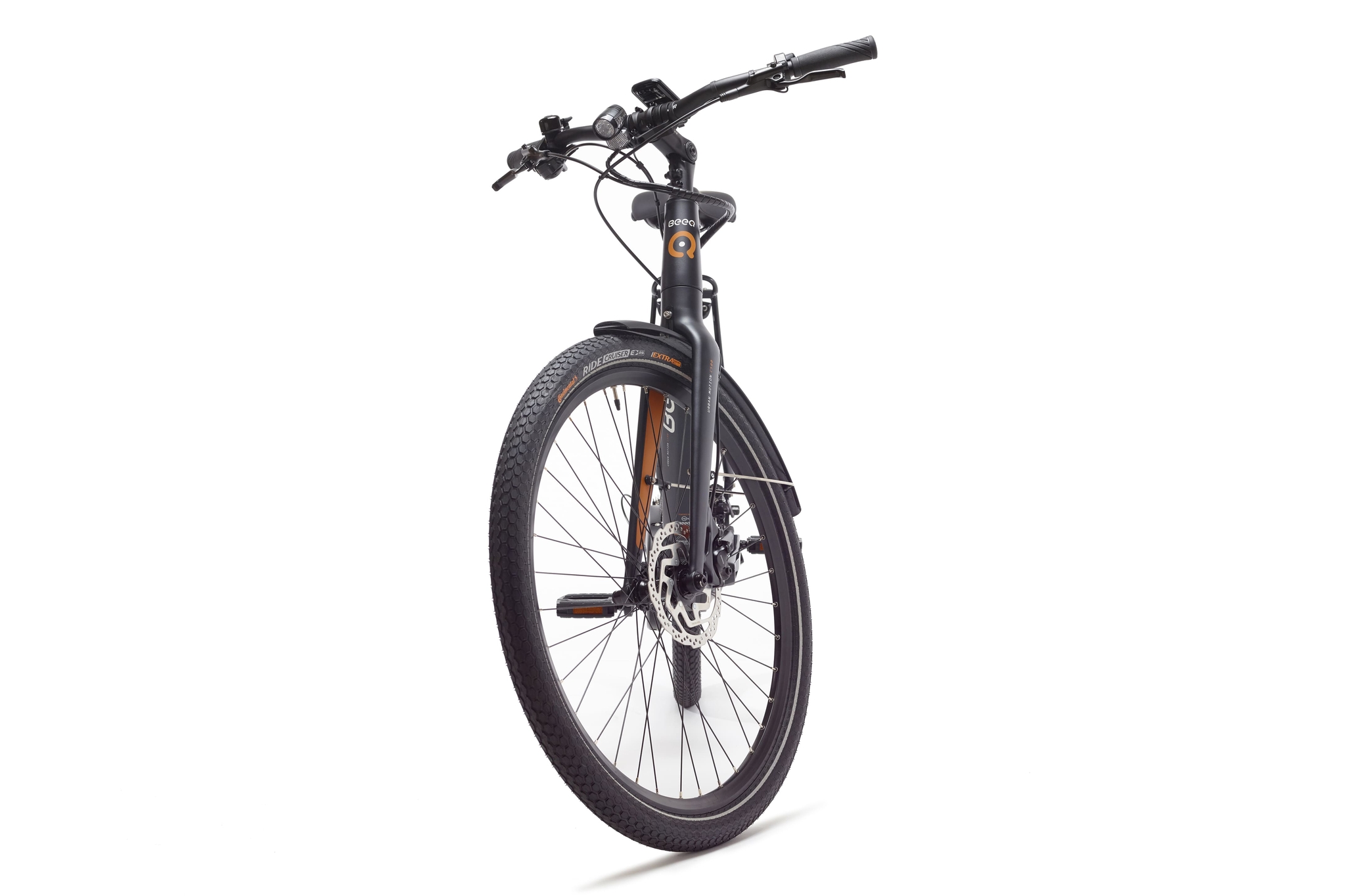

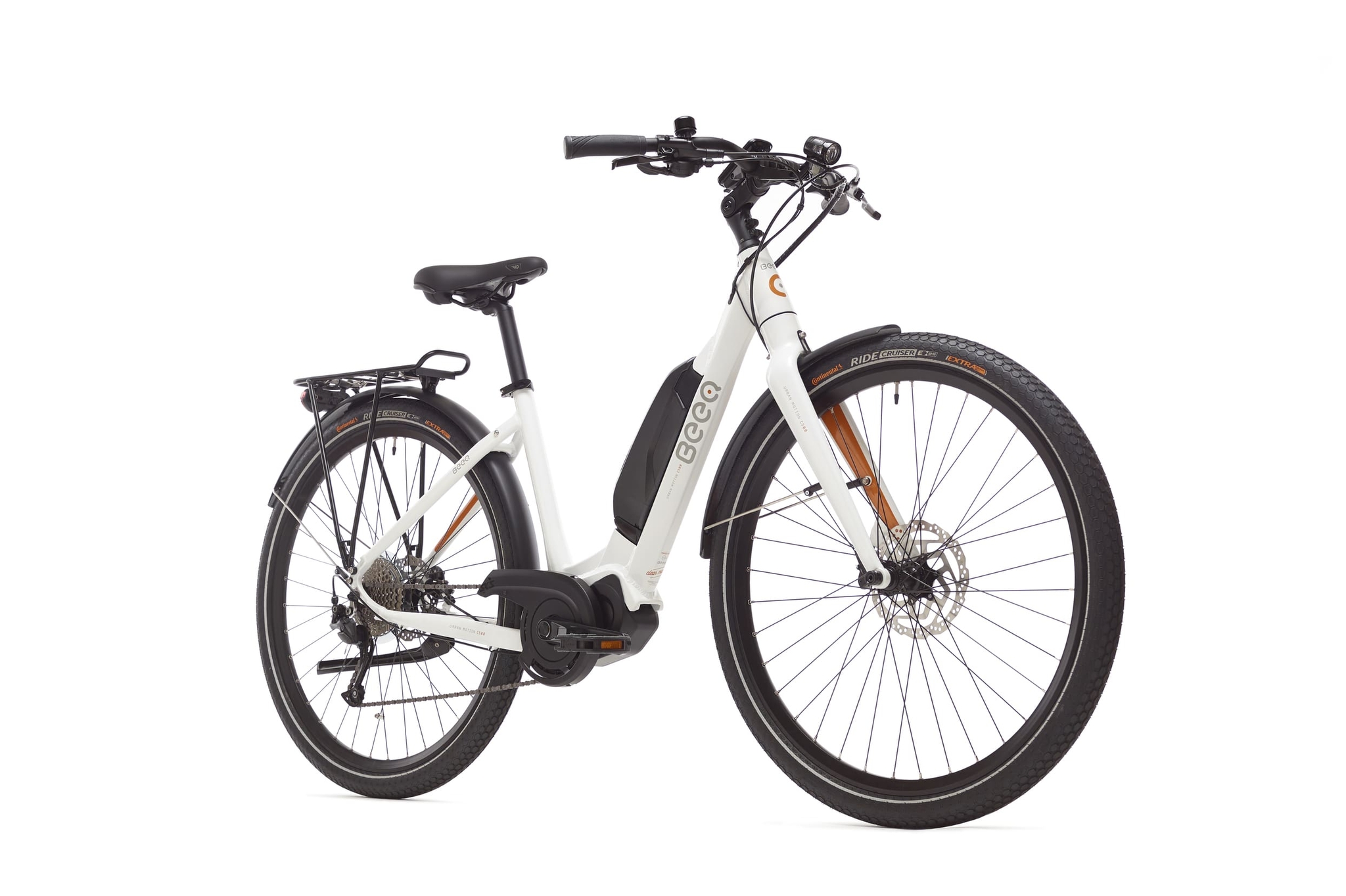

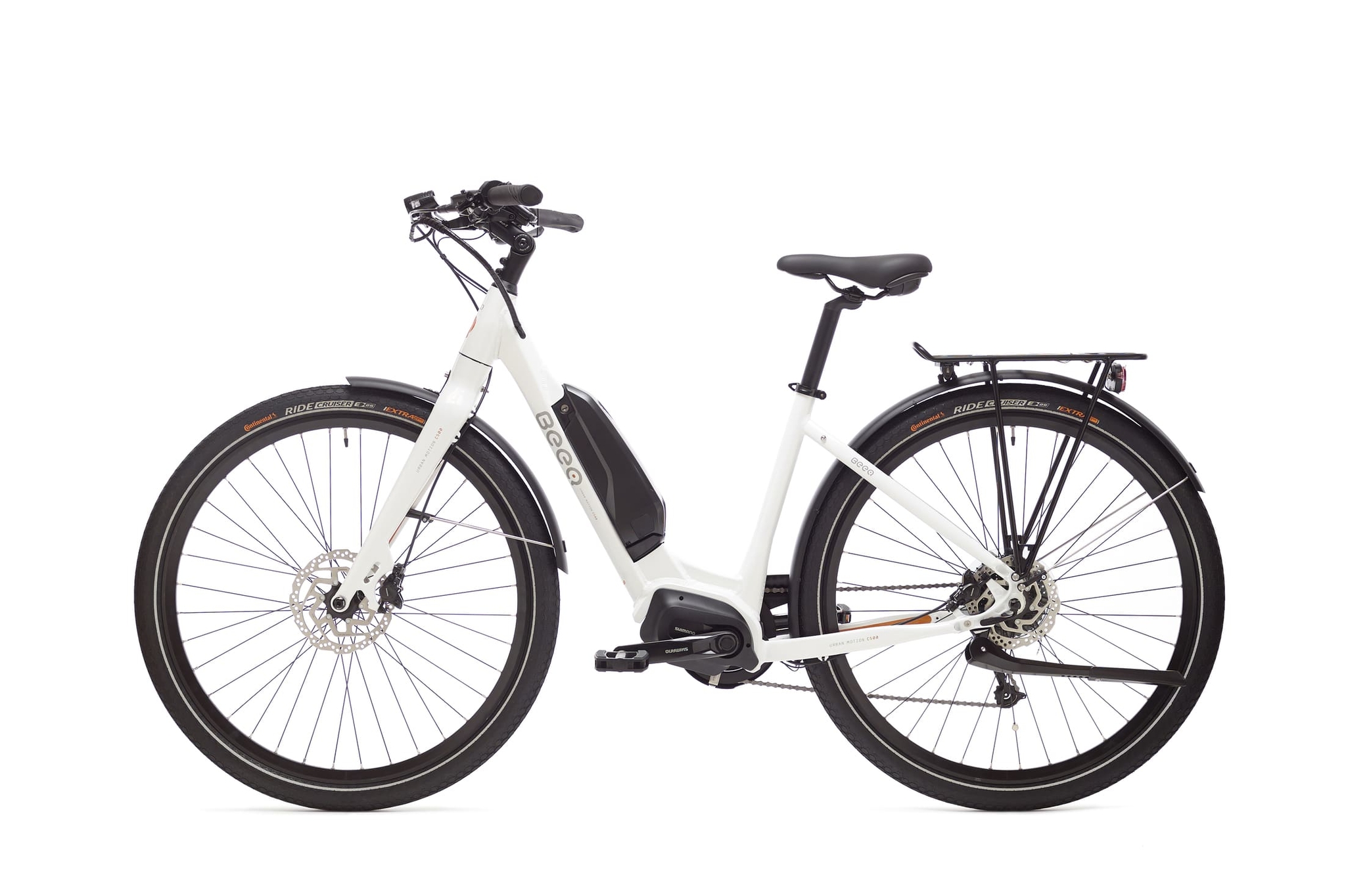

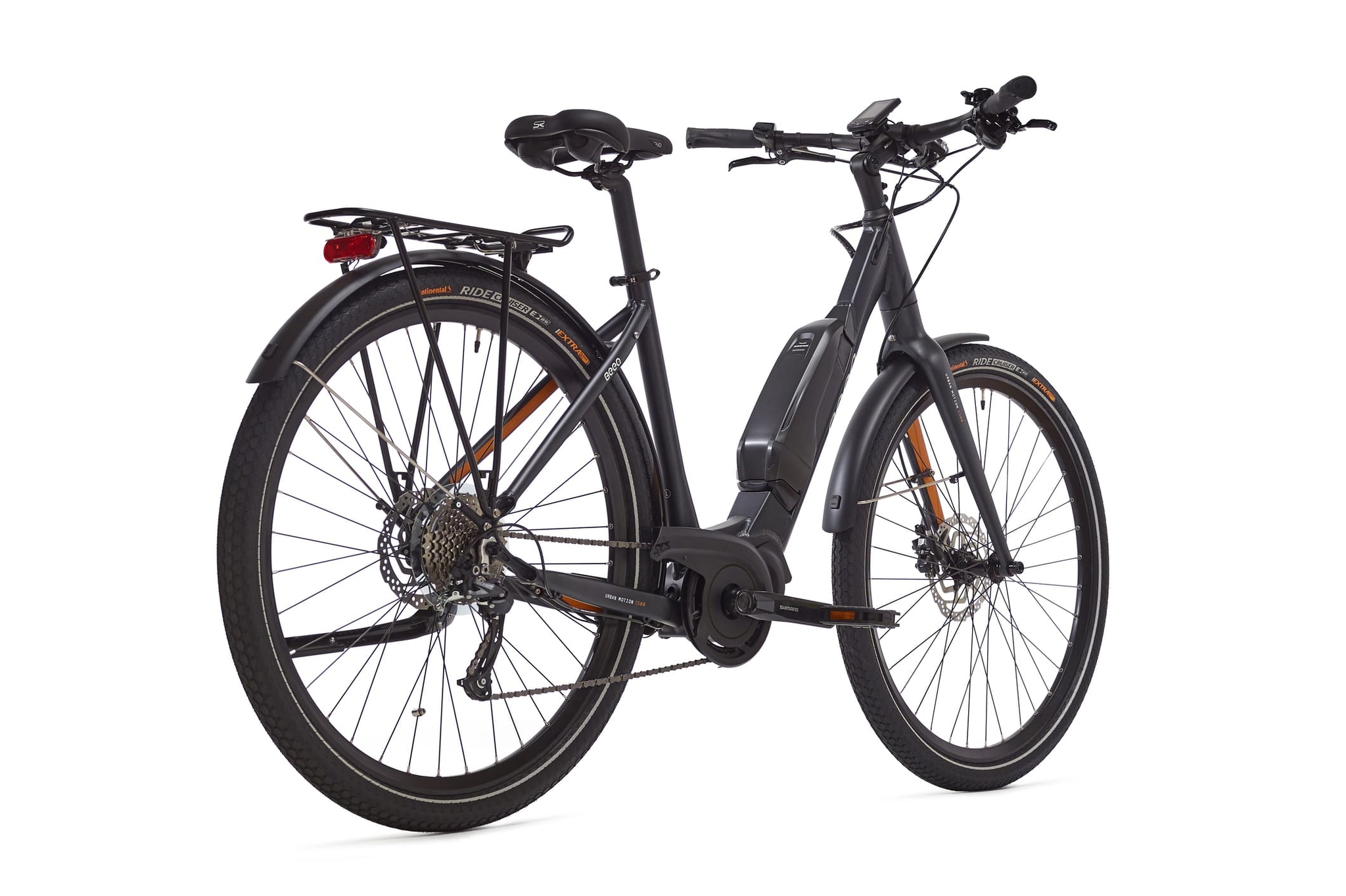

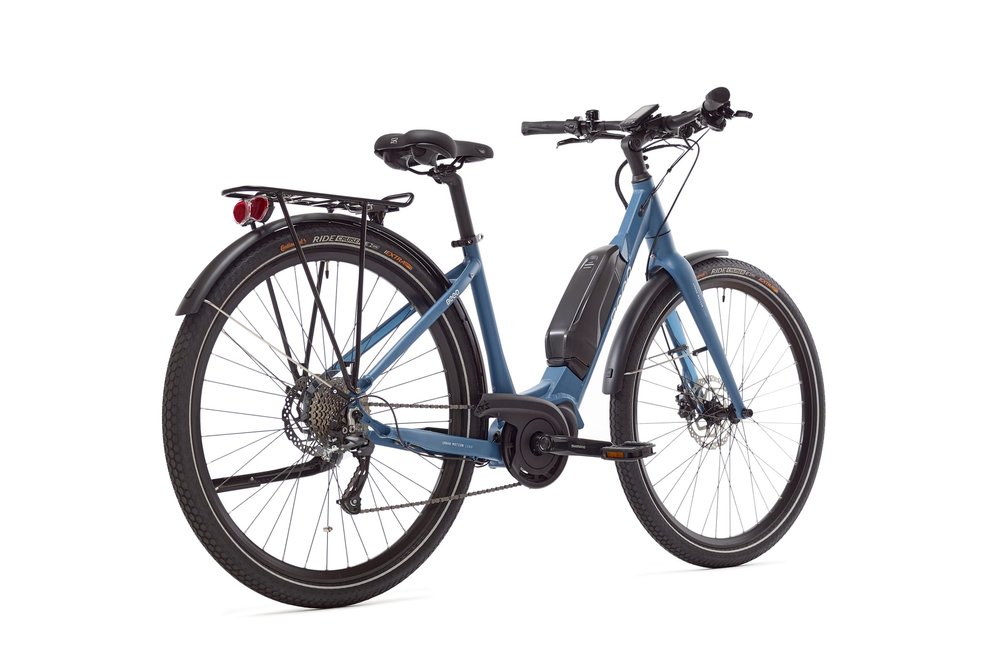

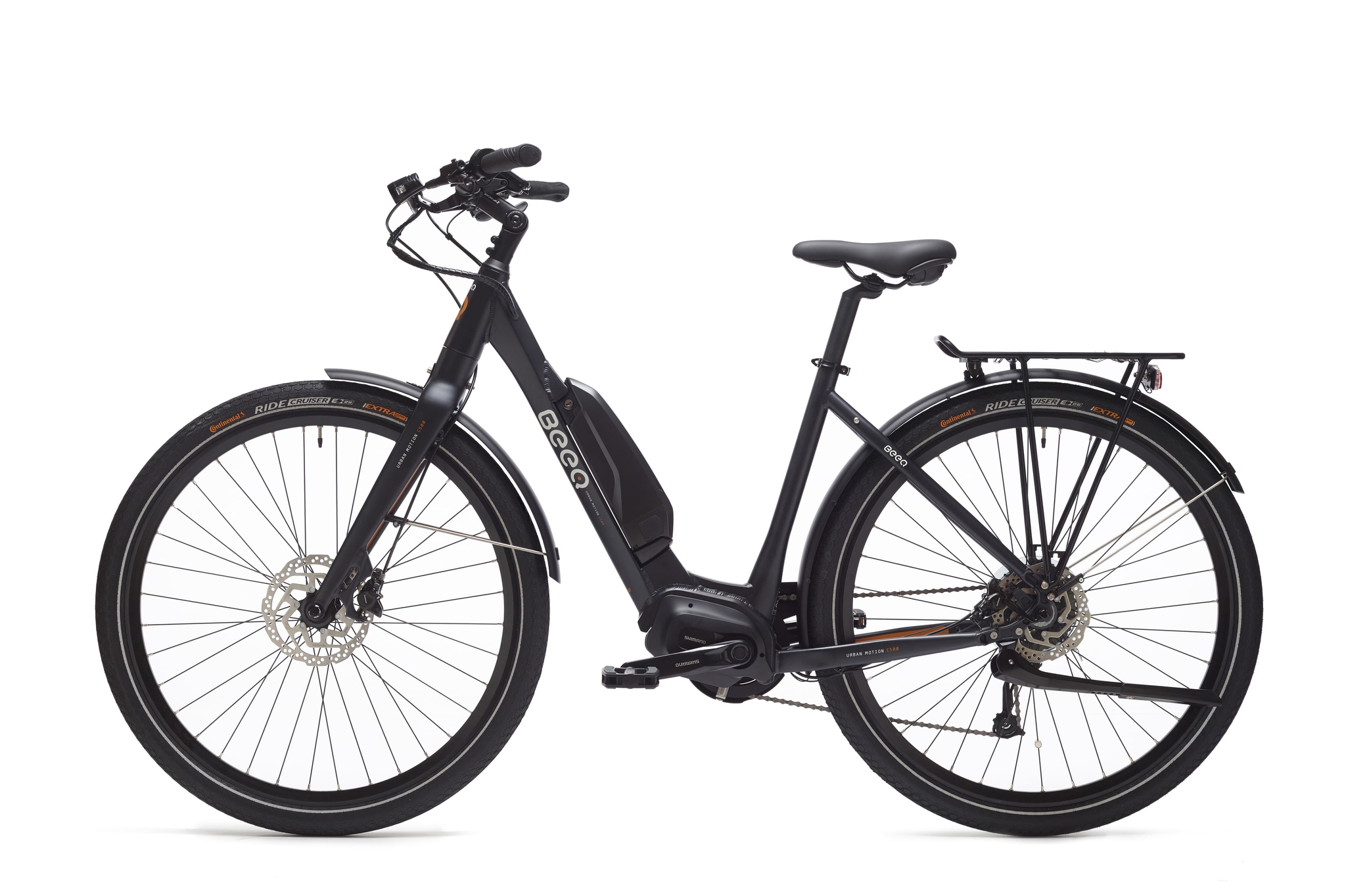

C500 Urban Motion
FUERZA
Llega a cualquier lugar más rápido con la ayuda del motor Shimano Steps E500 250 W 40 nm.
CONTROL
Buen control de la bicicleta gracias al motor central integrado, el robusto cuadro de aluminio y los frenos hidráulicos SHIMANO.
COMODIDAD
Gracias a la geometría del cuadro, cubiertas anchas Continental y sillín Selle Royal Gel.
AUTONOMÍA
Pedalea hasta 100 km (dependiendo del peso del usuario, las condiciones del terreno y el rango de altitud), gracias al motor eficiente y la batería de 418 W/h.
Vox Pop
BTT Lobo
" An urban ebike at an affordable price."
Detalles Técnicos
INFORMACIÓN DEL PRODUCTO
TAMAÑOS DEL MARCO
M (44cm) - L (48cm)
PESO
Approx. 25kg
PESO MÁXIMO (CICLISTA + BICICLETA)
120kg
The weight refers to the combined weight of the rider and bike including all clothing and equipment carried on the rider's person (backpacks etc.) and must not be exceeded.
PINTURA
Powder Painting Scratch Resistant with Matte or Glossy Varnish
COLORES
White Star w/ Gloss finish - Happy Blue w/ Matte Finish - Black Suit w/ Matter Finish
CUADRO
SISTEMA E-BIKE

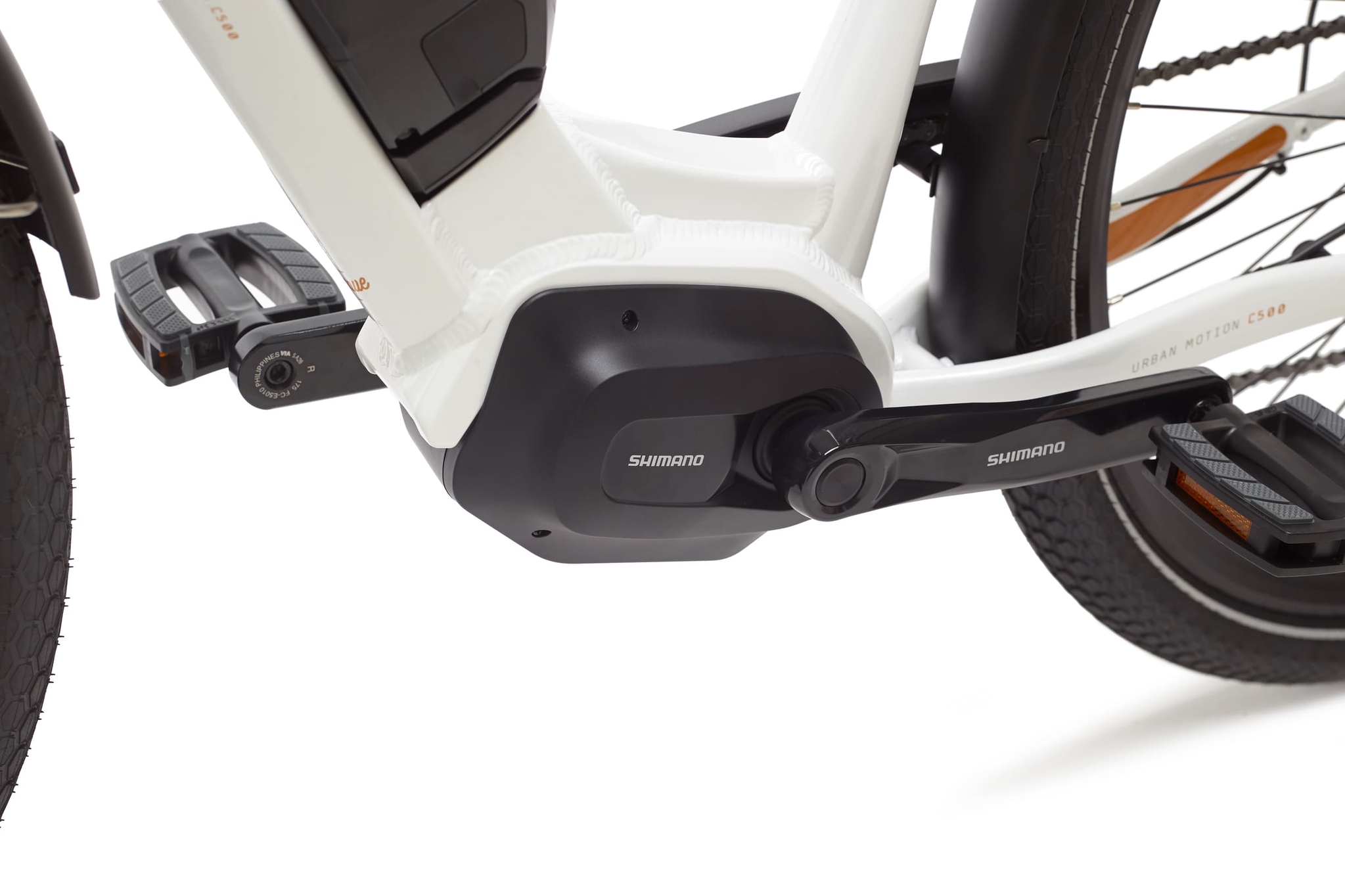

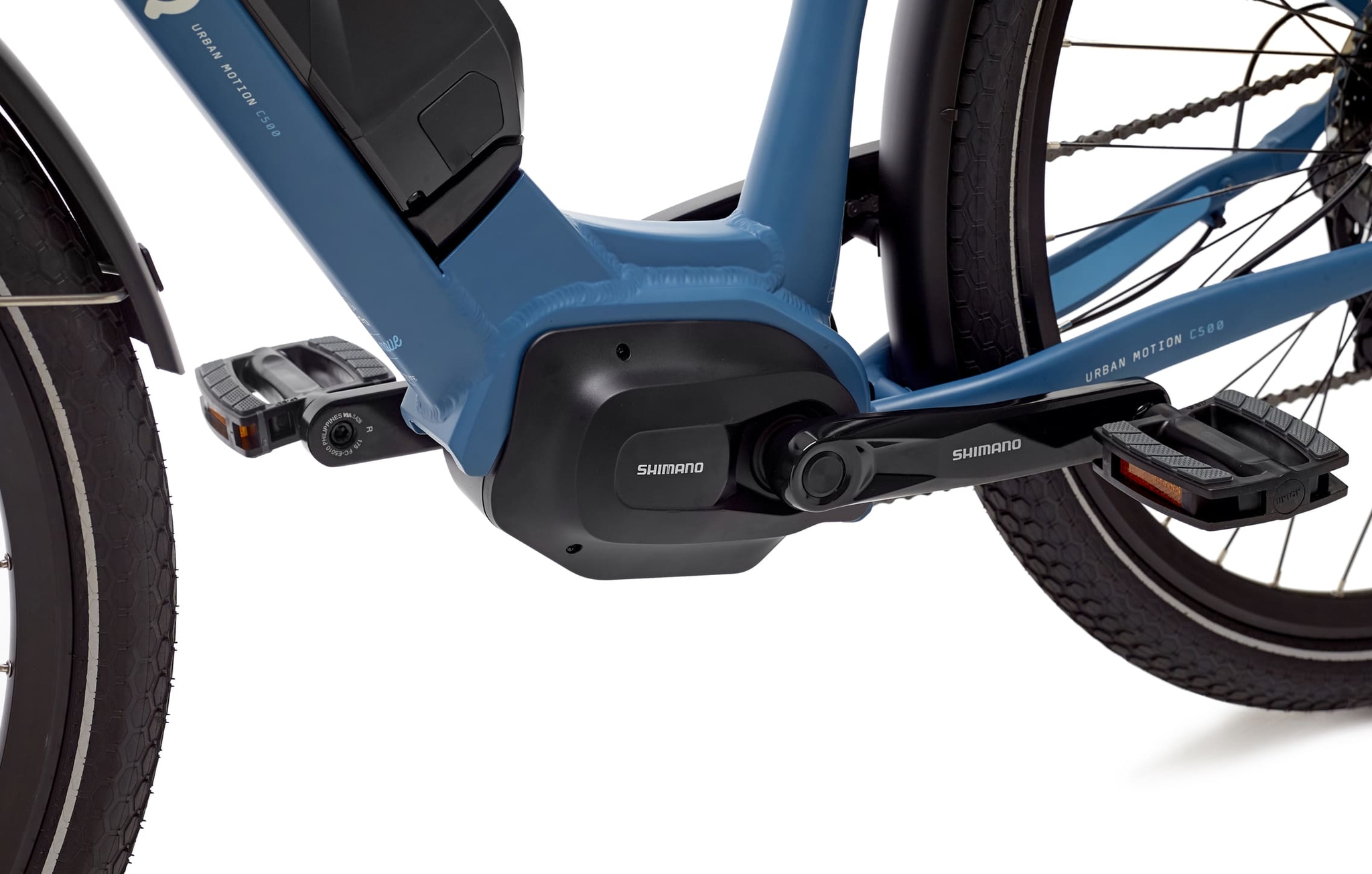

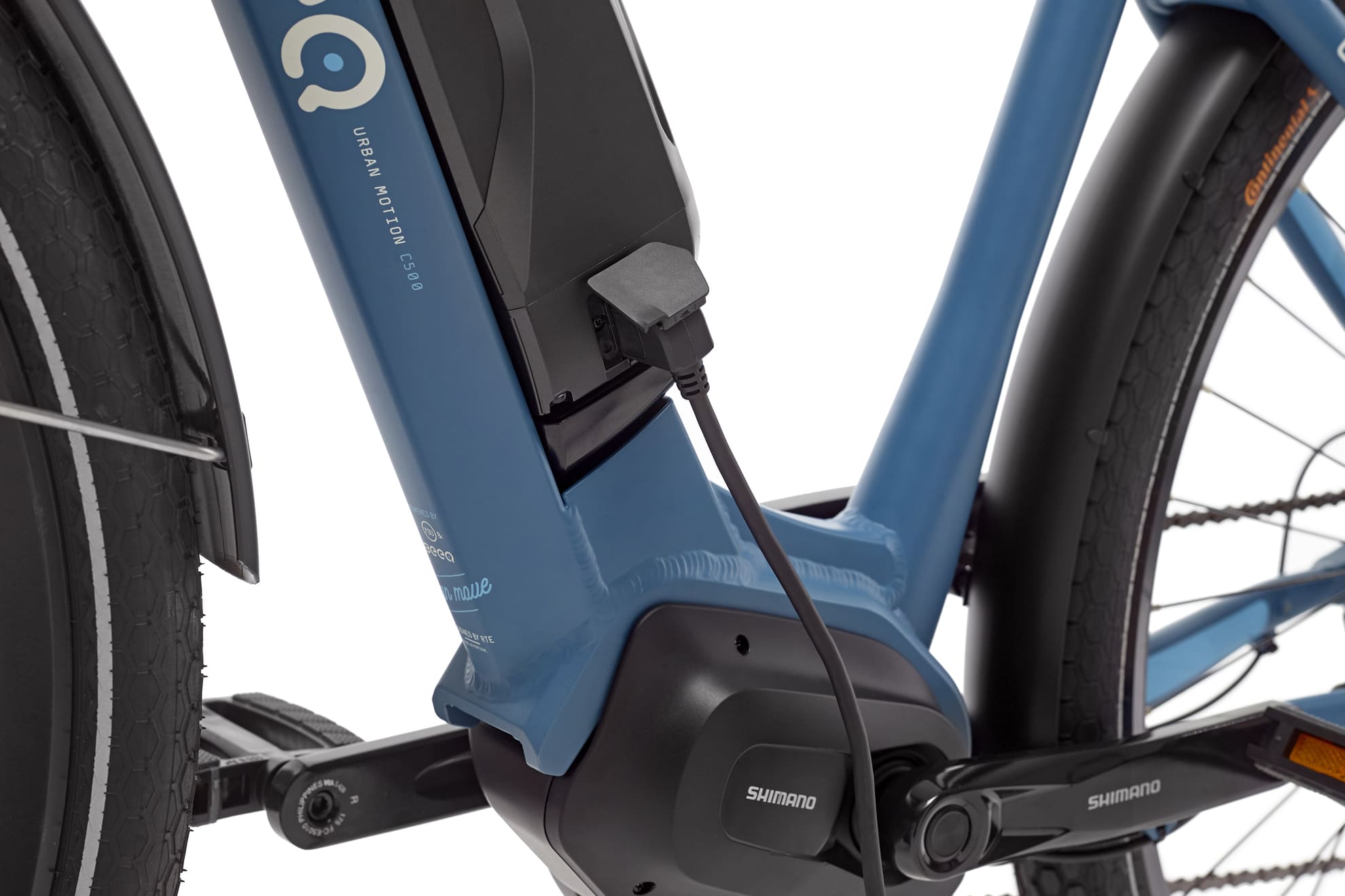

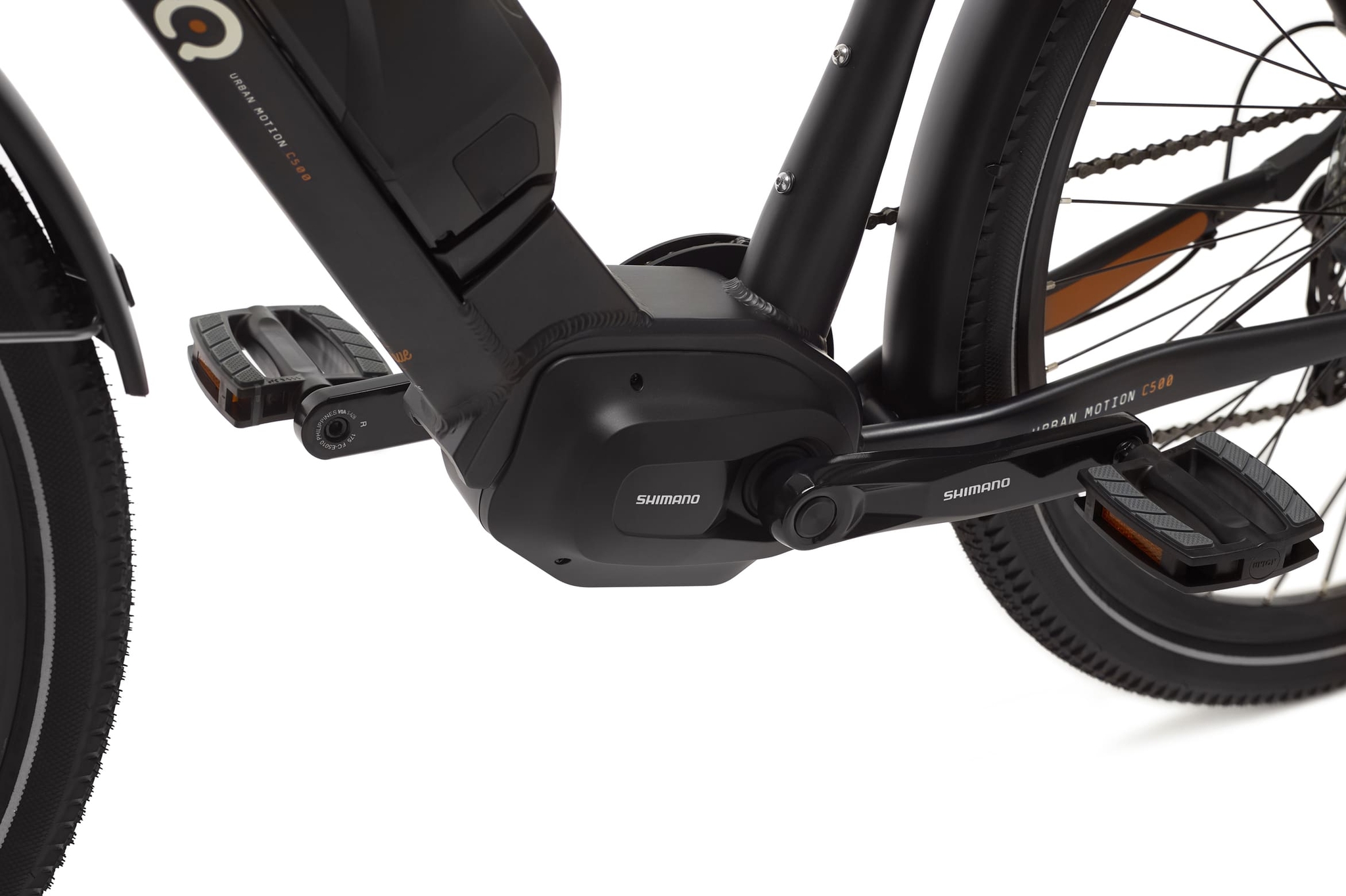

MOTOR
SHIMANO STEPS E5000 40Nm
250 W motor with max torque of 40 Nm, for solid power and acceleration
Durable square-axle bottom bracket, designed to handle the demands of e-bike riding
Optimised pedalling efficiency due to its narrowed pedal-to-frame width
Designed for all weather conditions
Transmission of power through dedicated chainring
Up to 200% max support to effortlessly get you anywhere you need to go
Power-assist modes: High, Normal, Eco, Walk
- High: Full support for when you need it most (200% support)
- Normal: Smooth, comfortable support (100% support)
- Eco: Saves battery for those long rides (40% support)
- Walk: Easy to activate, offers a helping hand in pushing the bike (up to 6 km/h)
Durable square-axle bottom bracket, designed to handle the demands of e-bike riding
Optimised pedalling efficiency due to its narrowed pedal-to-frame width
Designed for all weather conditions
Transmission of power through dedicated chainring
Up to 200% max support to effortlessly get you anywhere you need to go
Power-assist modes: High, Normal, Eco, Walk
- High: Full support for when you need it most (200% support)
- Normal: Smooth, comfortable support (100% support)
- Eco: Saves battery for those long rides (40% support)
- Walk: Easy to activate, offers a helping hand in pushing the bike (up to 6 km/h)

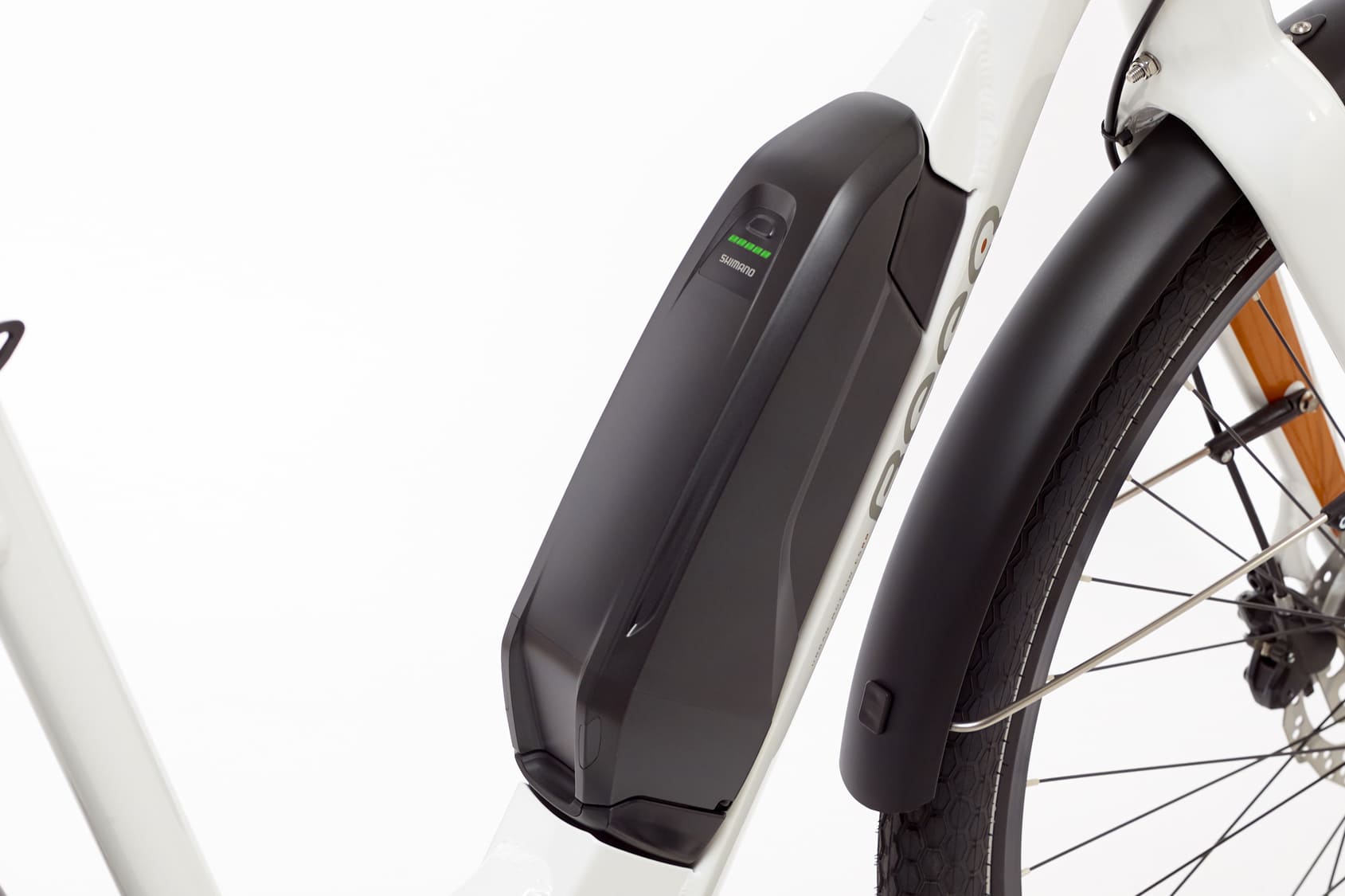

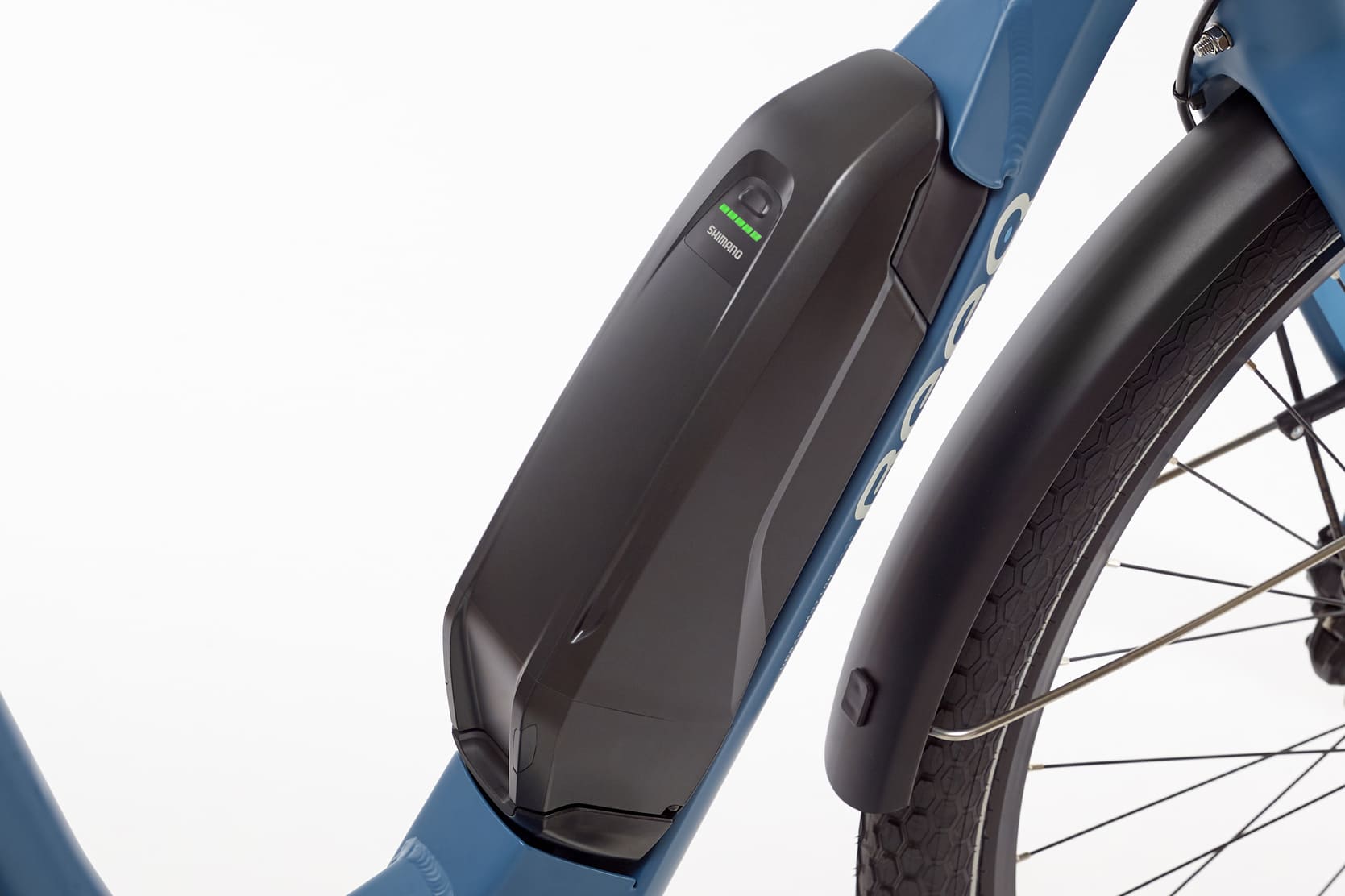

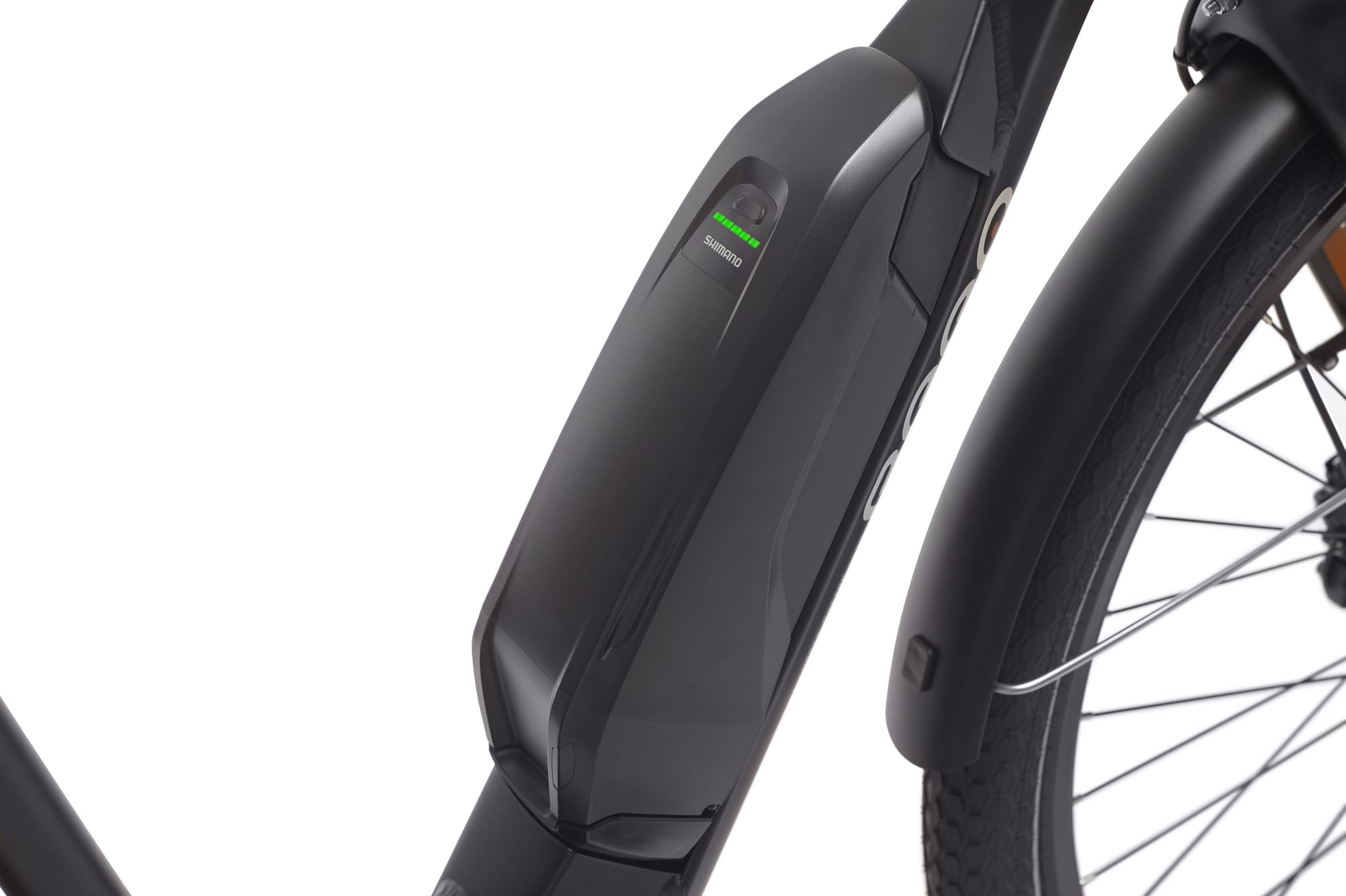

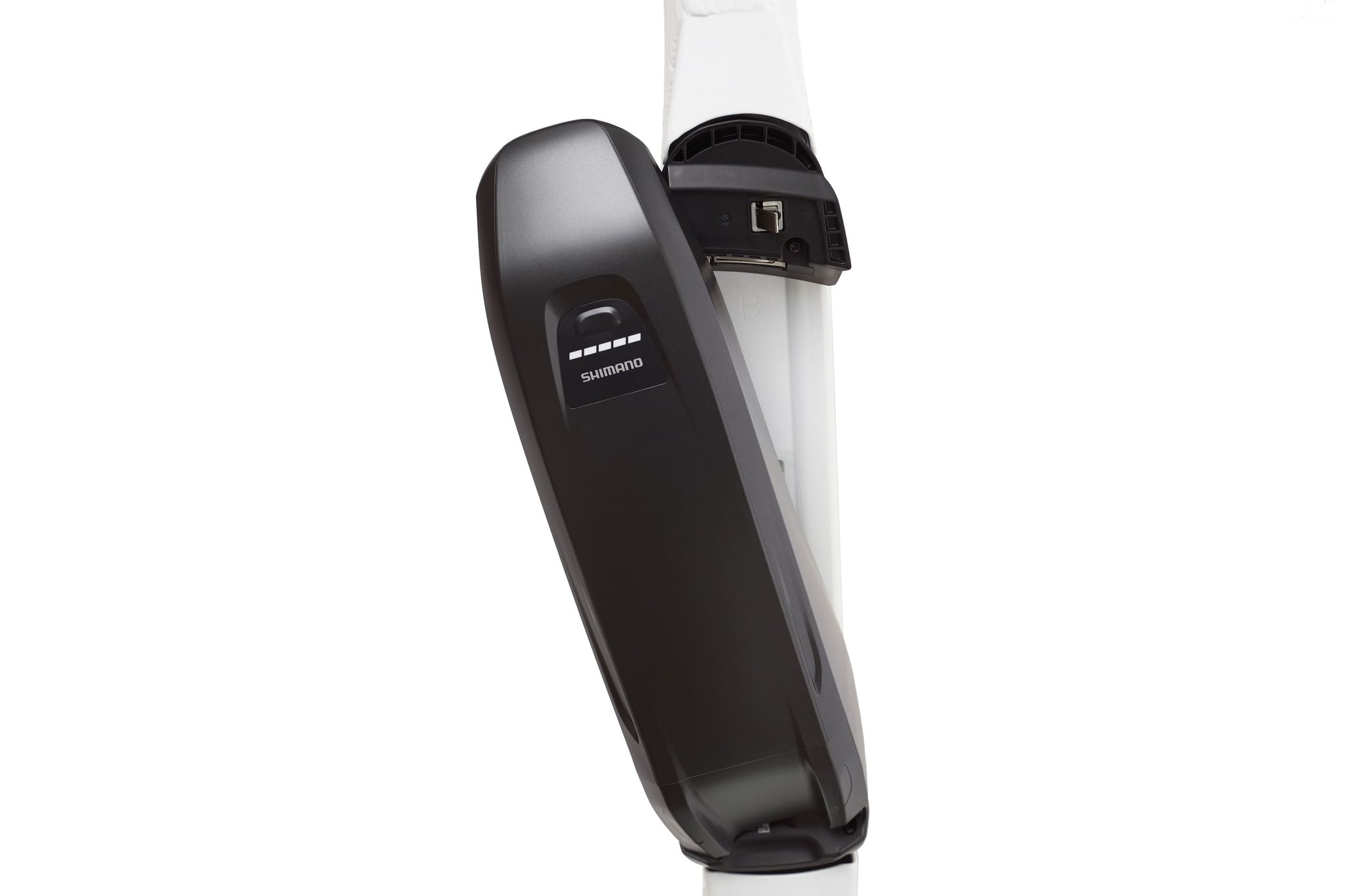

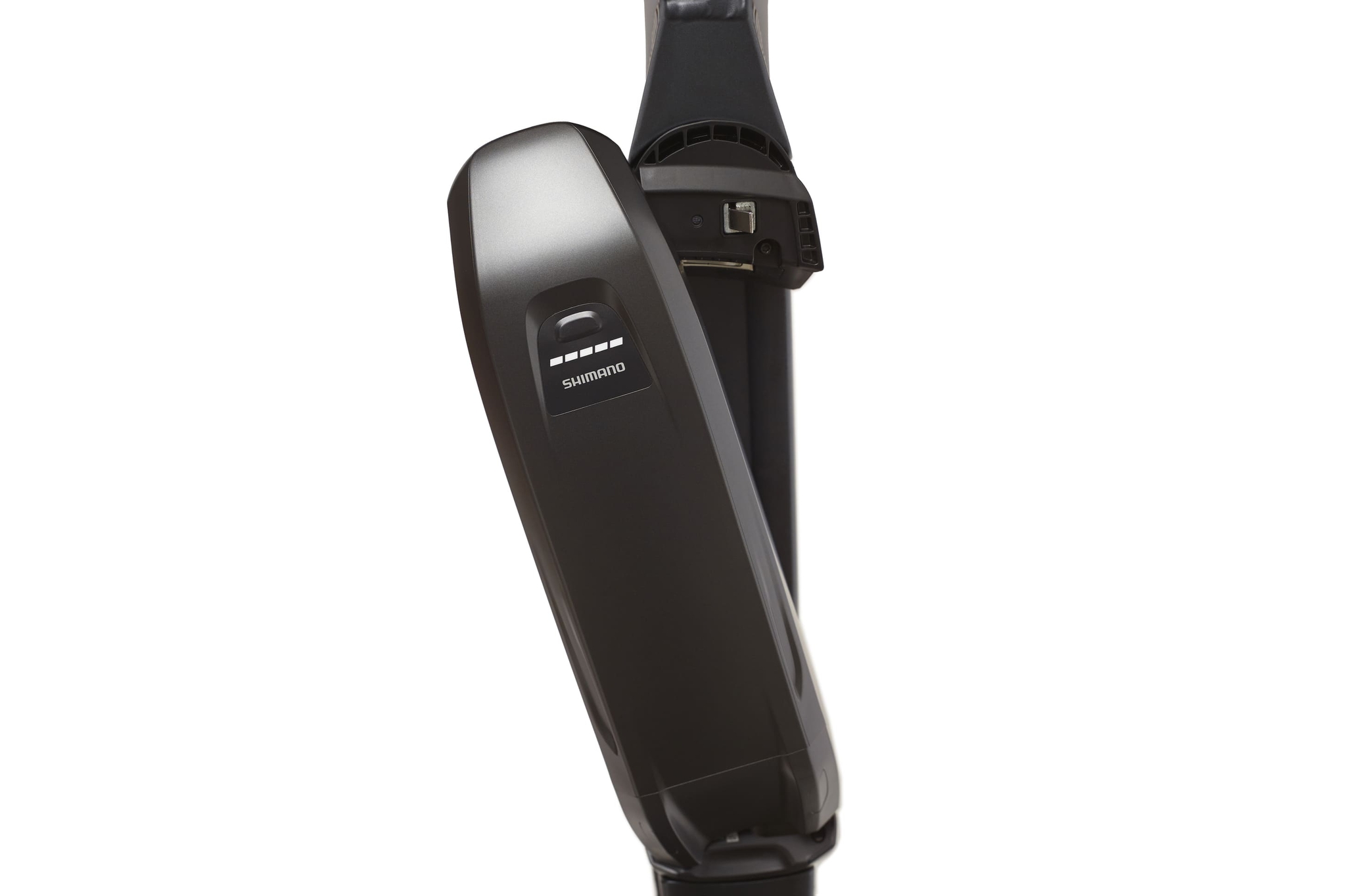

BATERÍA

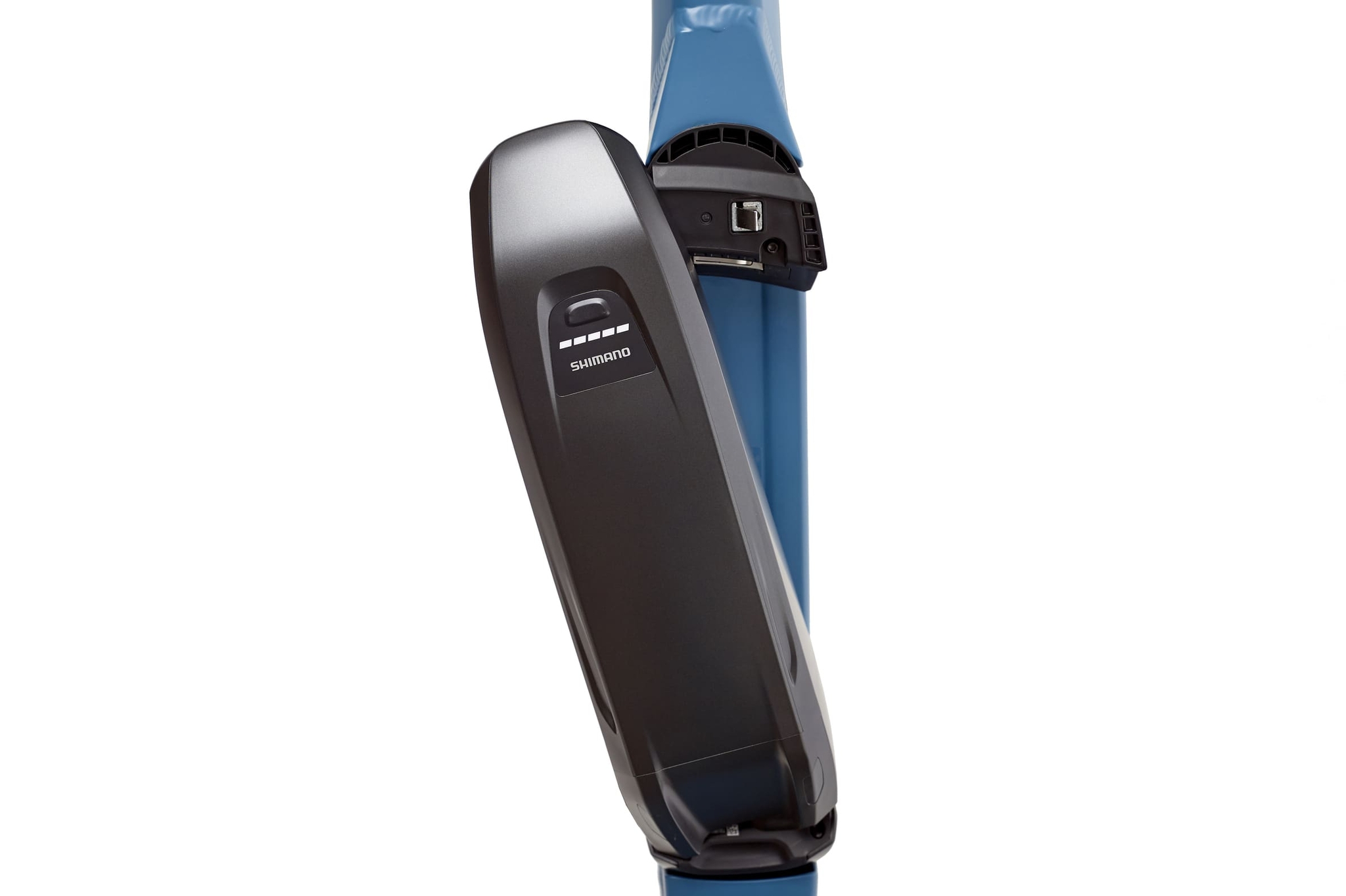

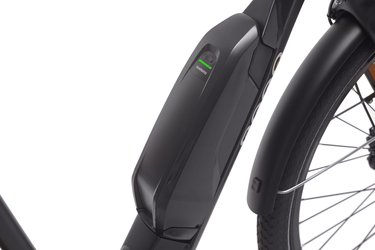

418Wh 36V - Semi-integrated in downtube - Removable
- 50~190km Autonomy
- High capacity Li-Ion battery options: 418 Wh external downtube-mounted (2,660 g)
- Holds at least 80% of its max charge after 500 full charges
- Holds at least 60% of its max charge after 1000 full charges
- High capacity Li-Ion battery options: 418 Wh external downtube-mounted (2,660 g)
- Holds at least 80% of its max charge after 500 full charges
- Holds at least 60% of its max charge after 1000 full charges
AUTONOMIA
40km to 100km
LAVE DE BLOQUEO DE BATERÍA
SI

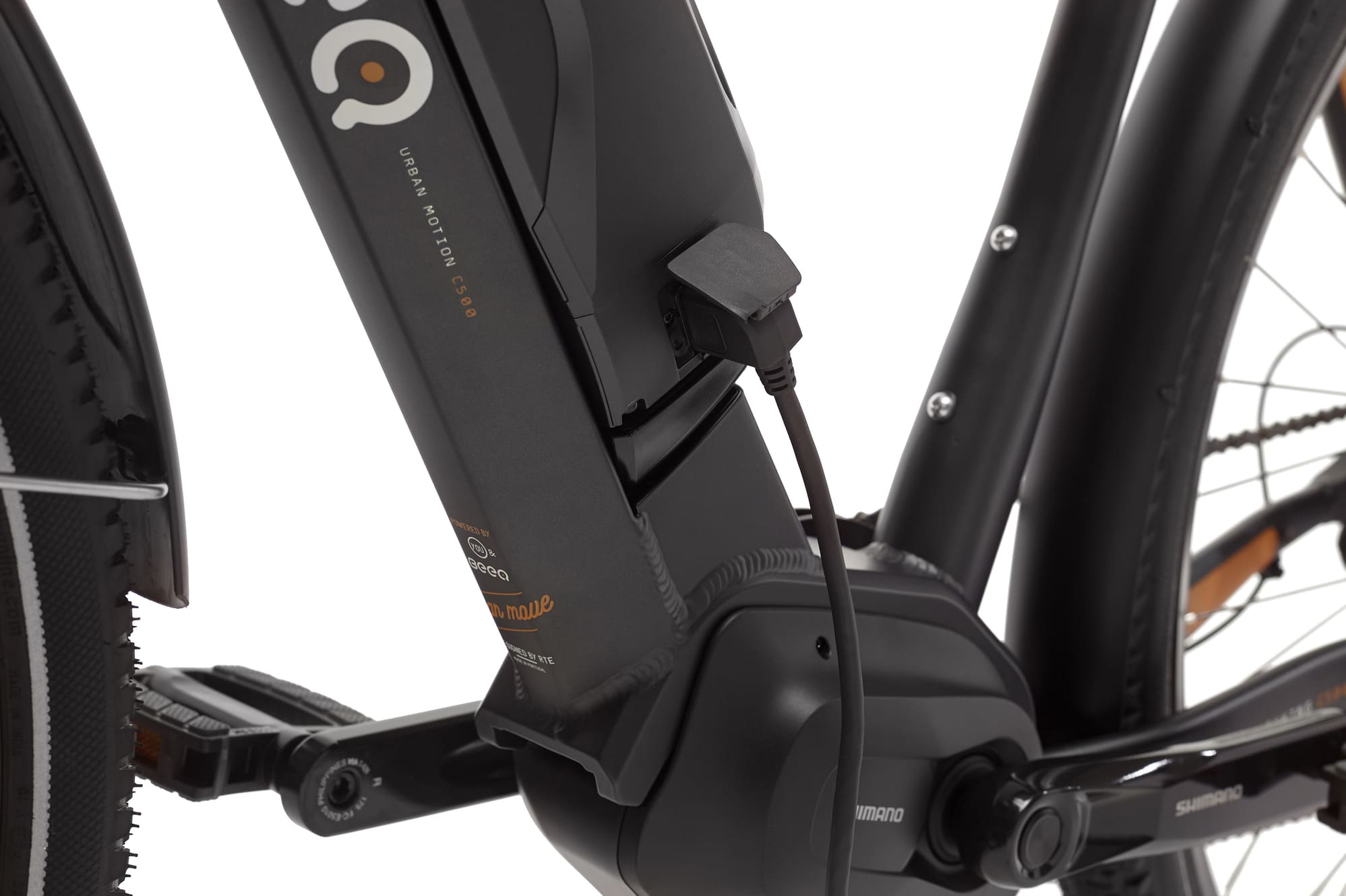

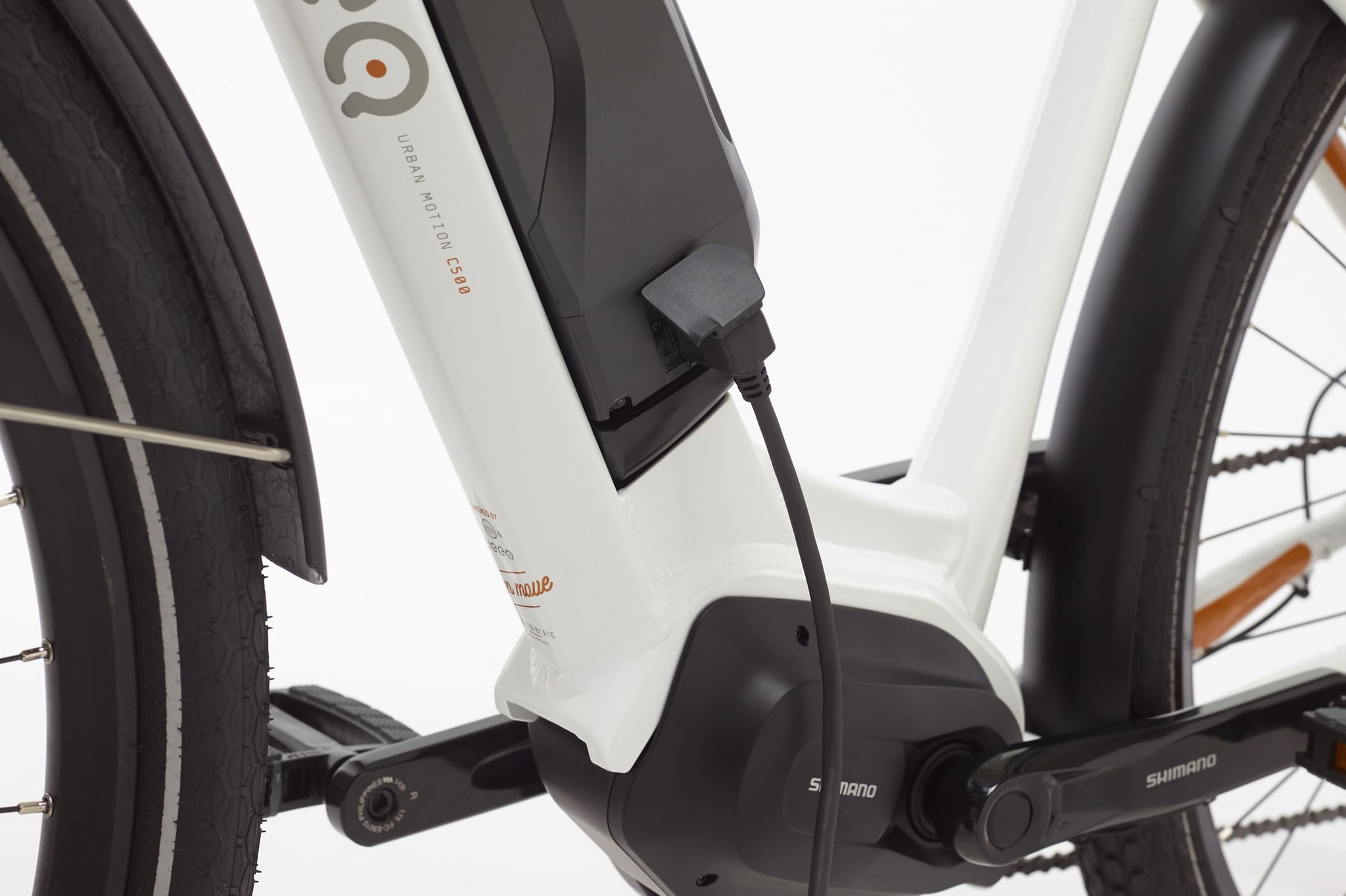

CARGADOR
2A - 6 hours total charge time

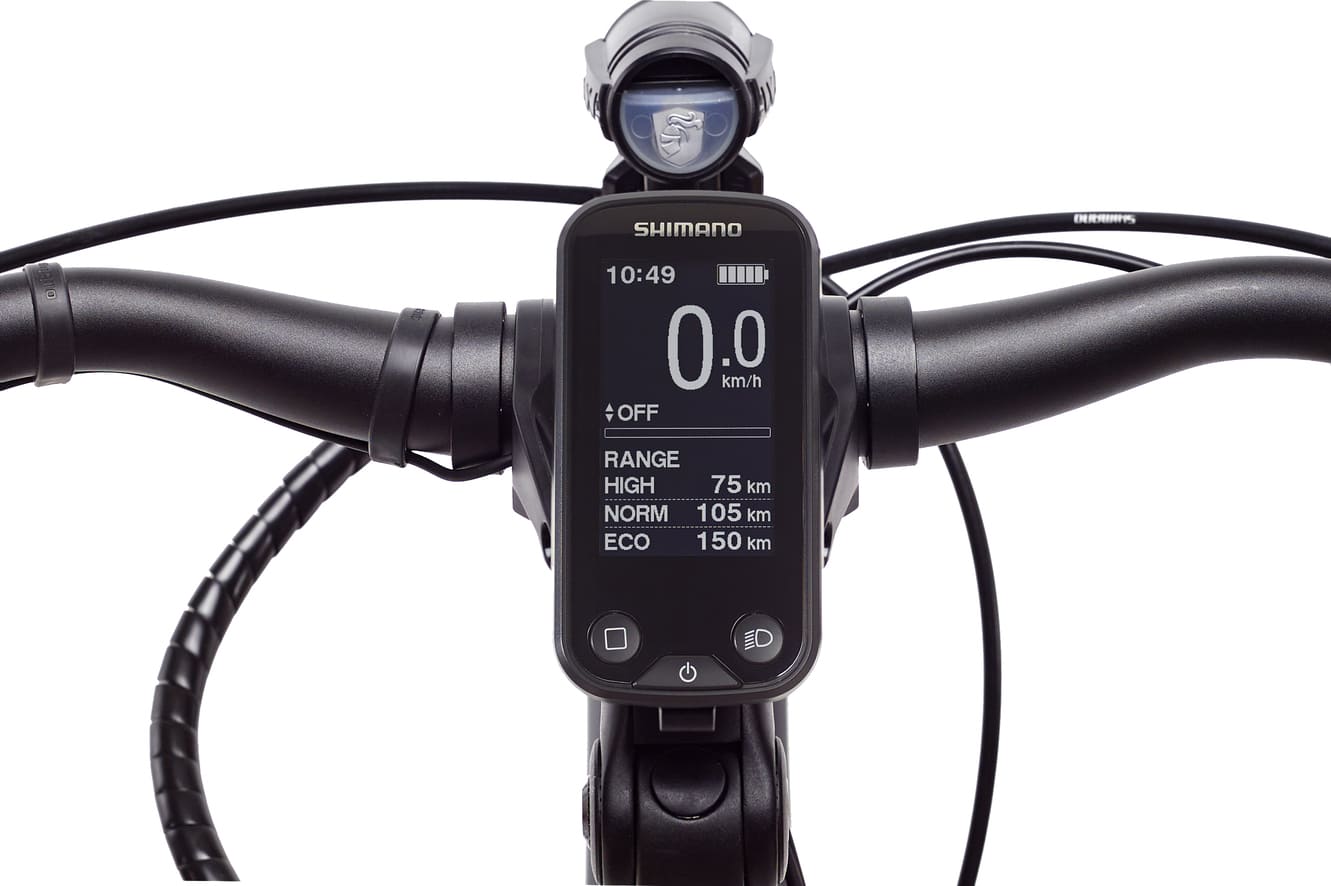

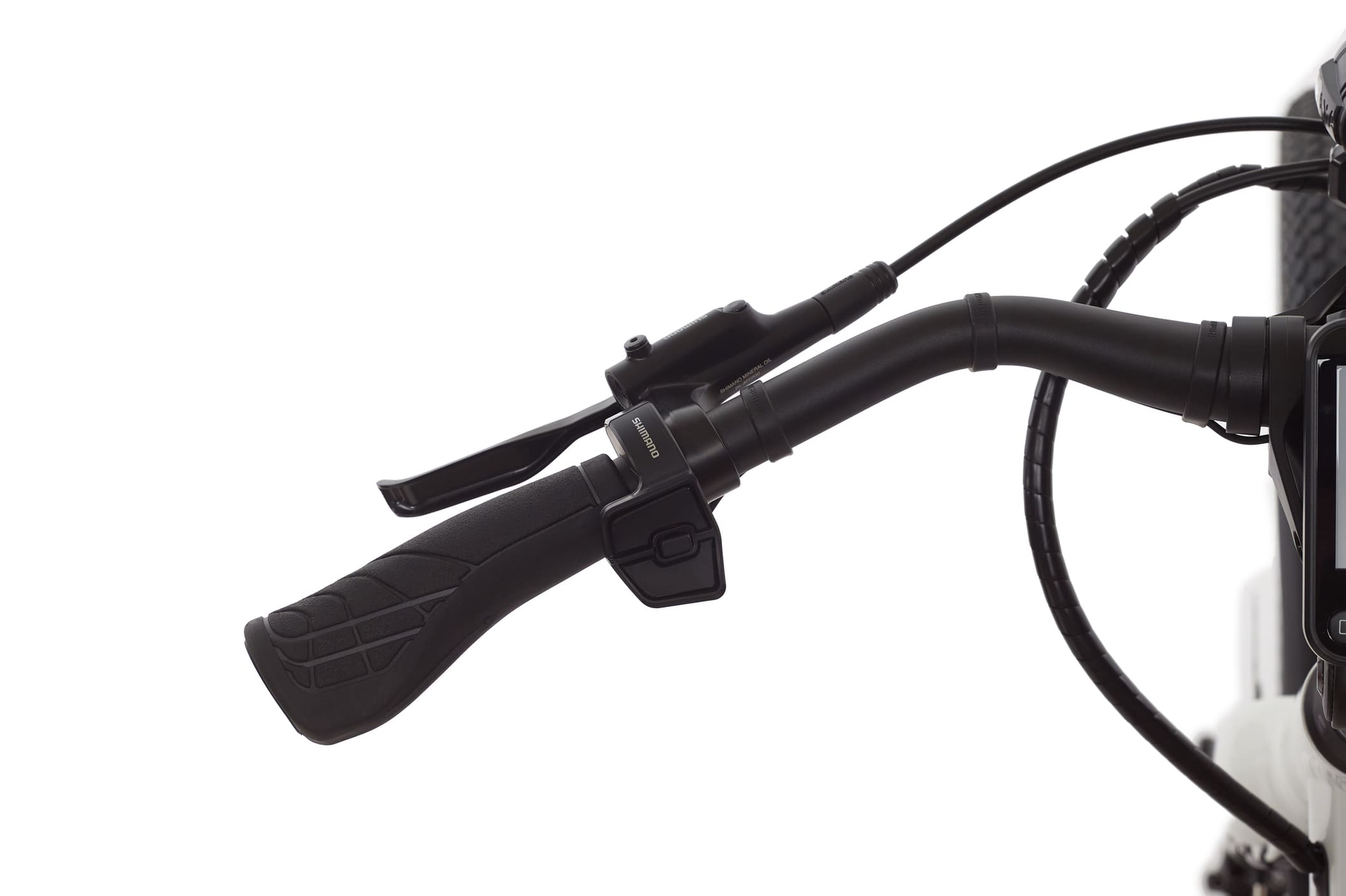

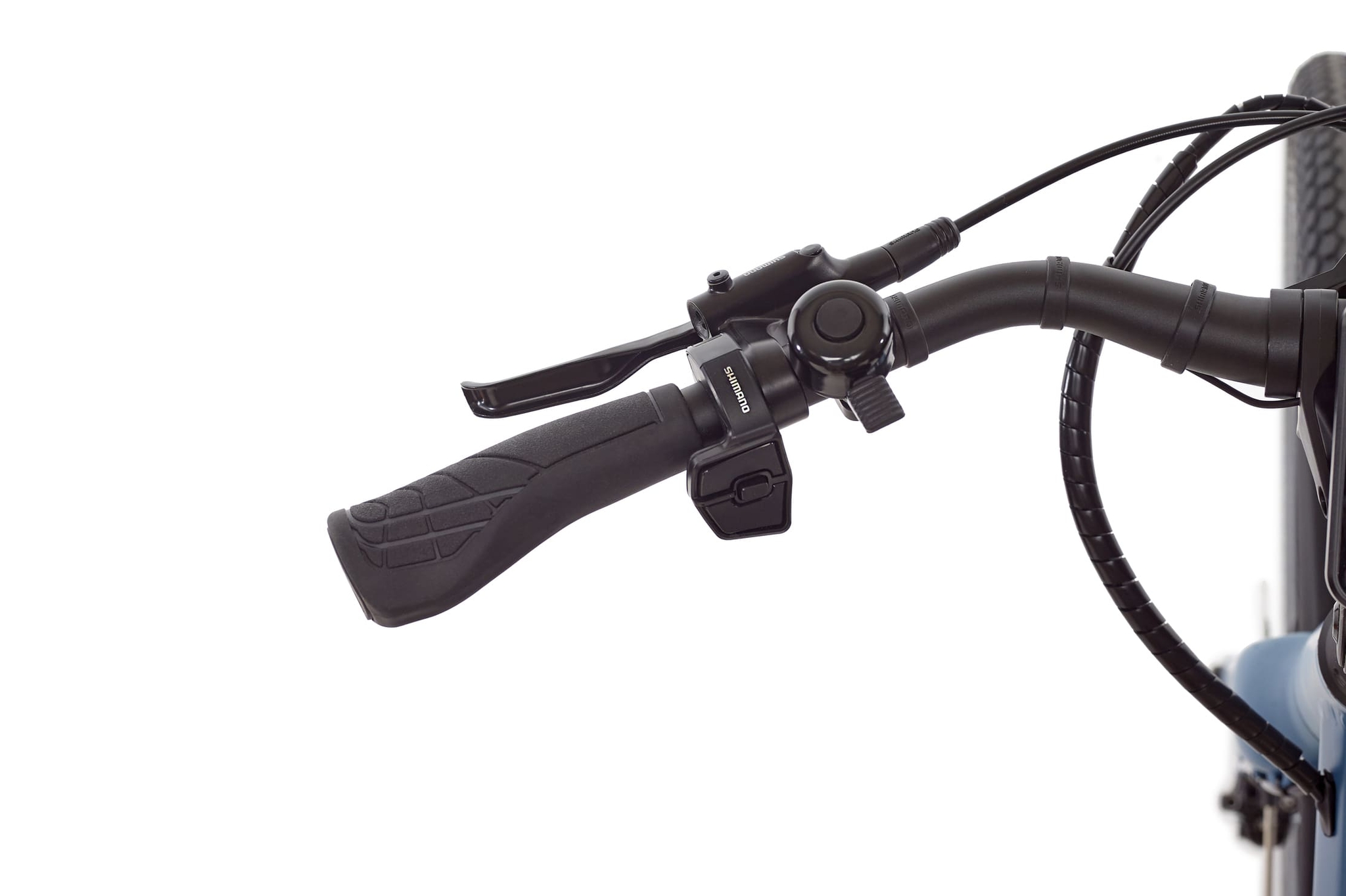

PANTALLA
SHIMANO SC-E6100

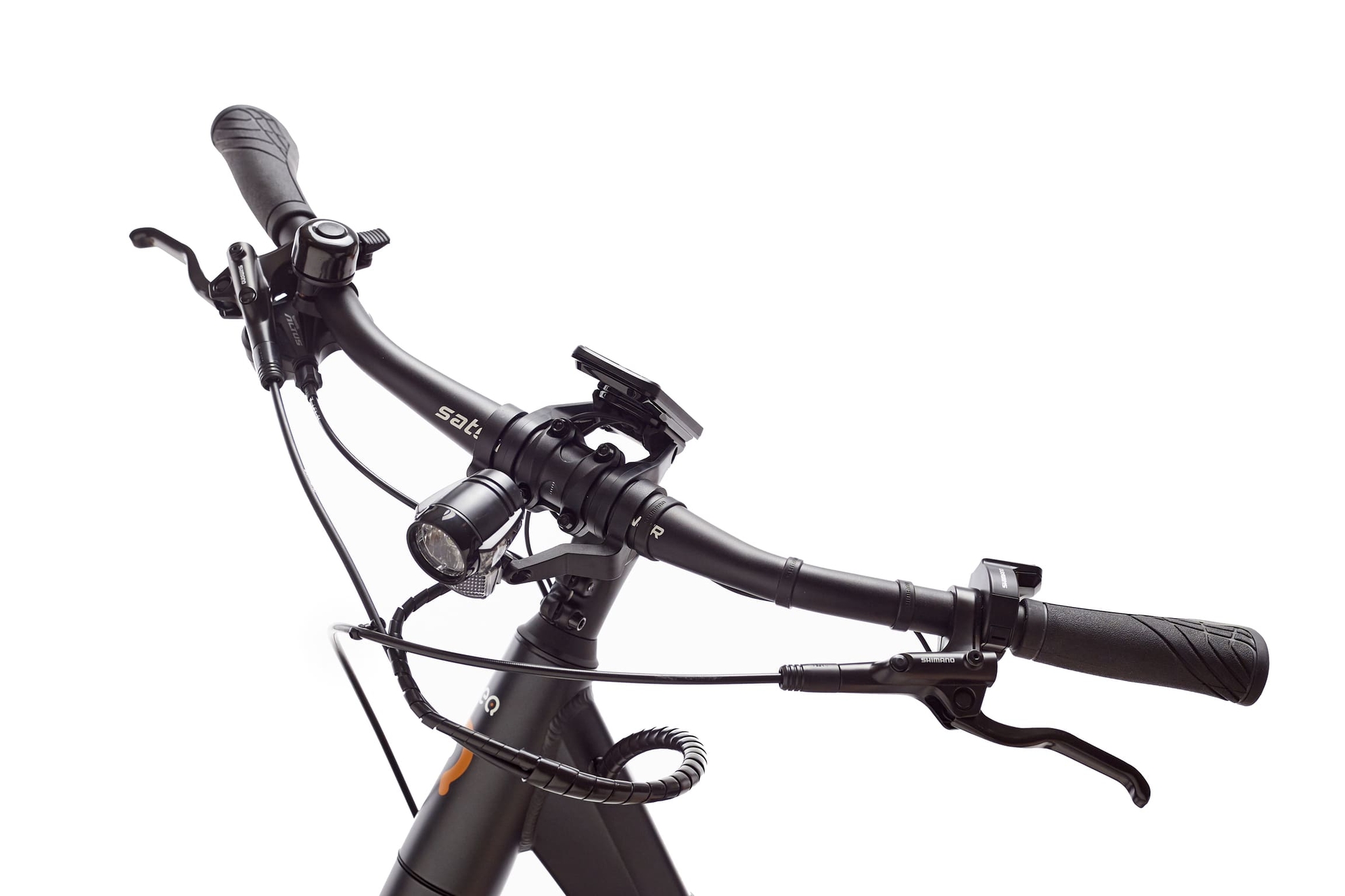

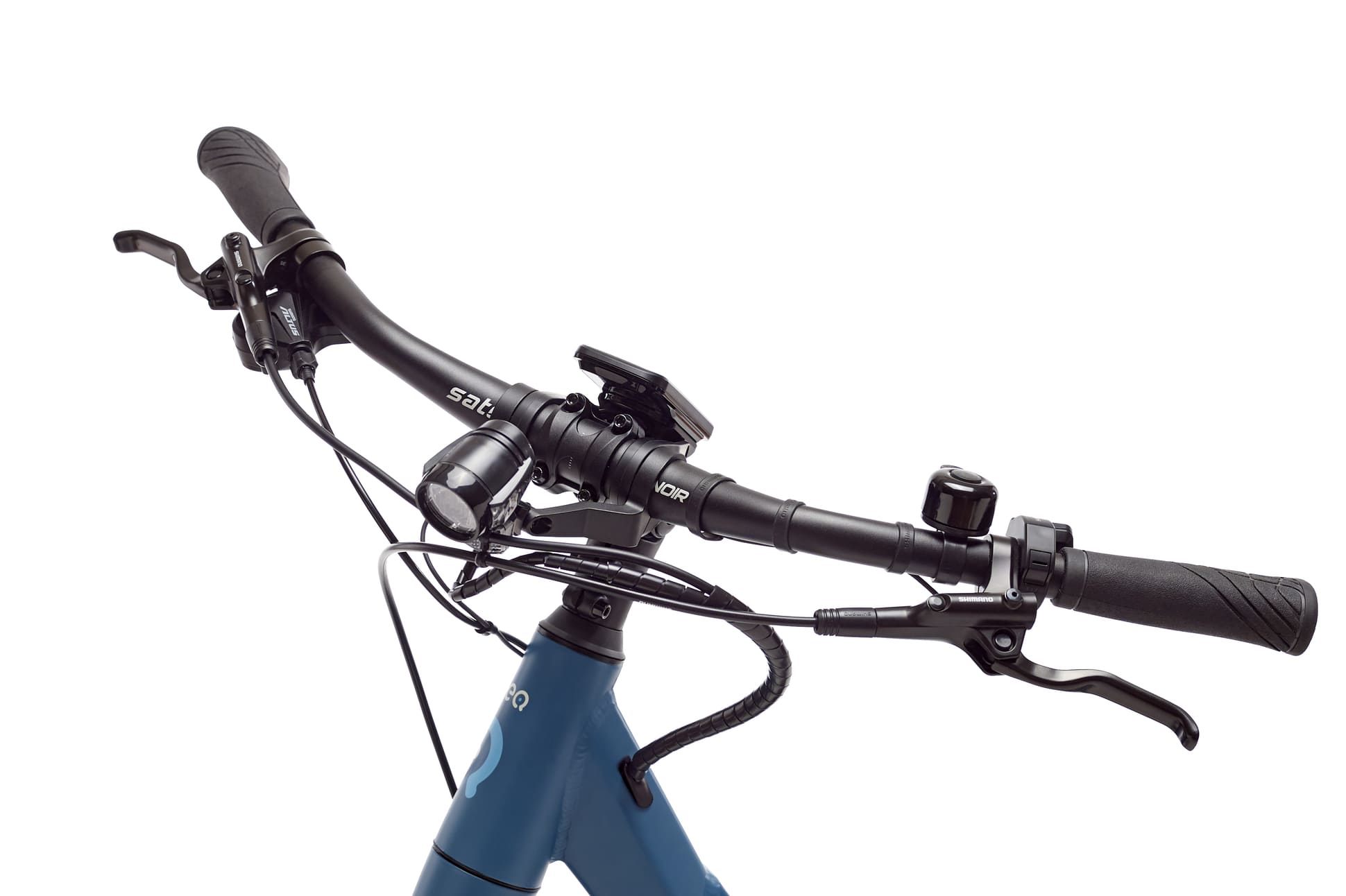

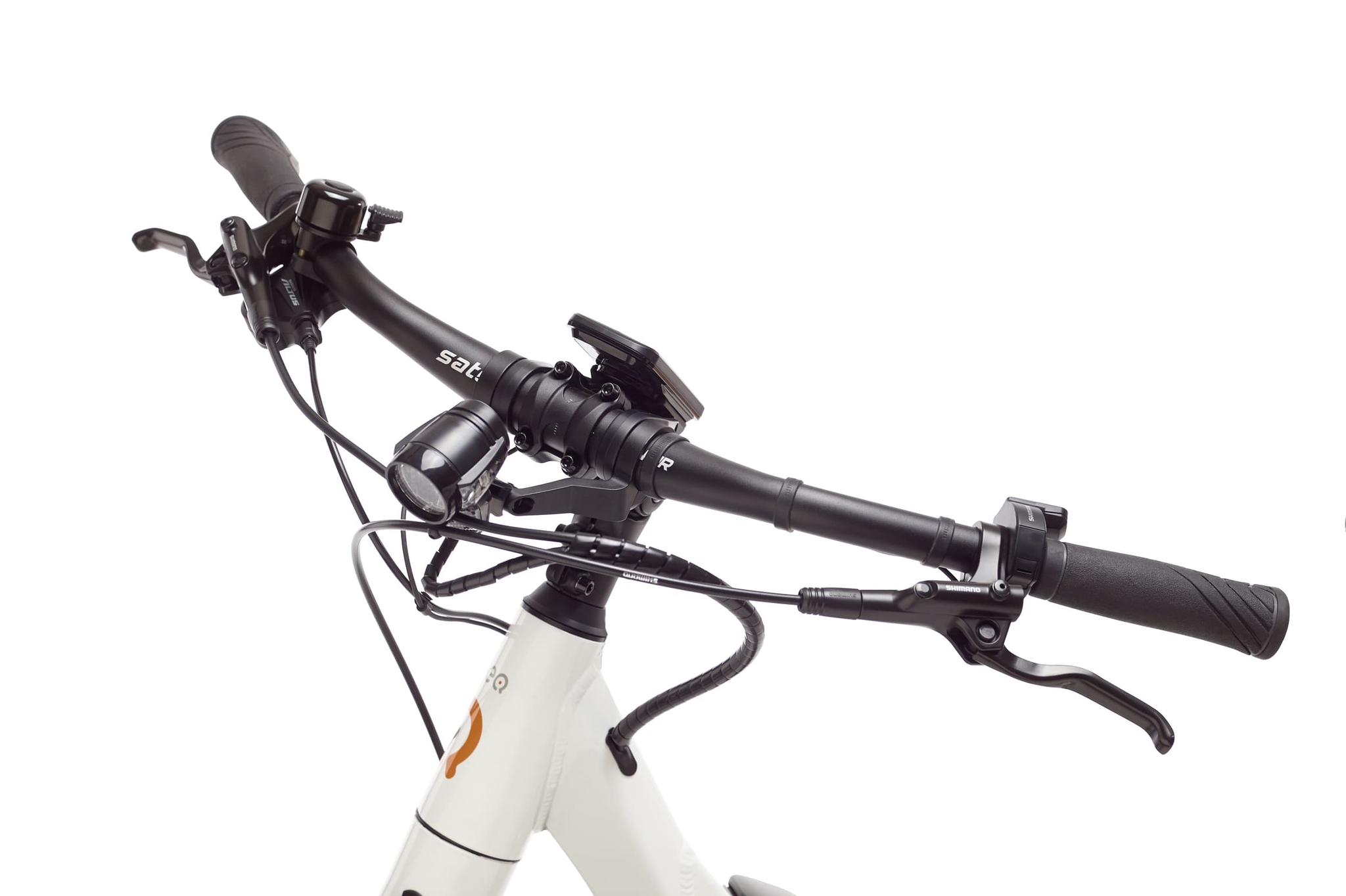

COCKPIT
JUEGO DE RUEDAS
TAMAÑO DE RUEDA
28''
LLANTAS
Alloy Double Wall 25mm
RADIOS
Stainless Steel Black

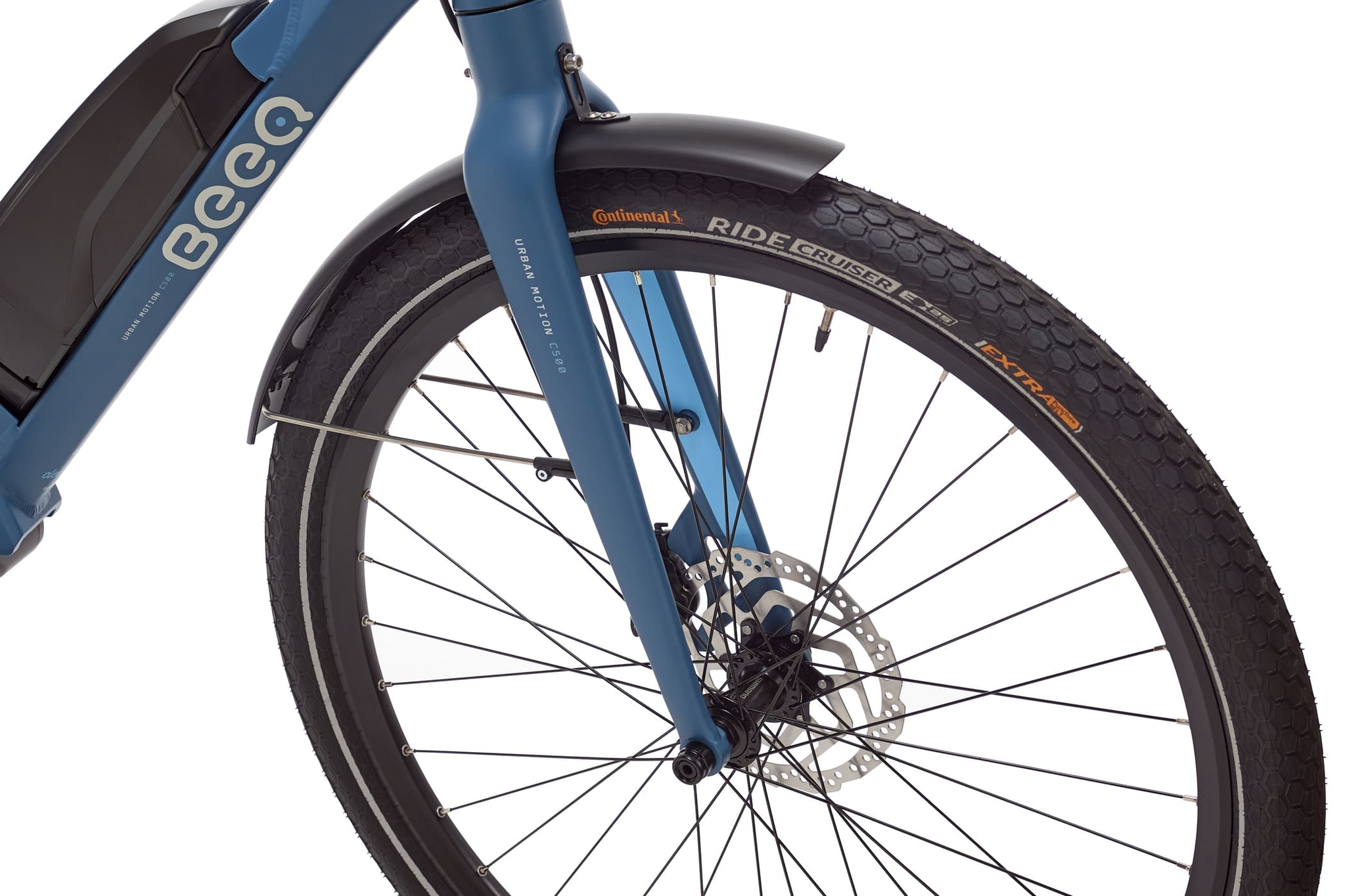

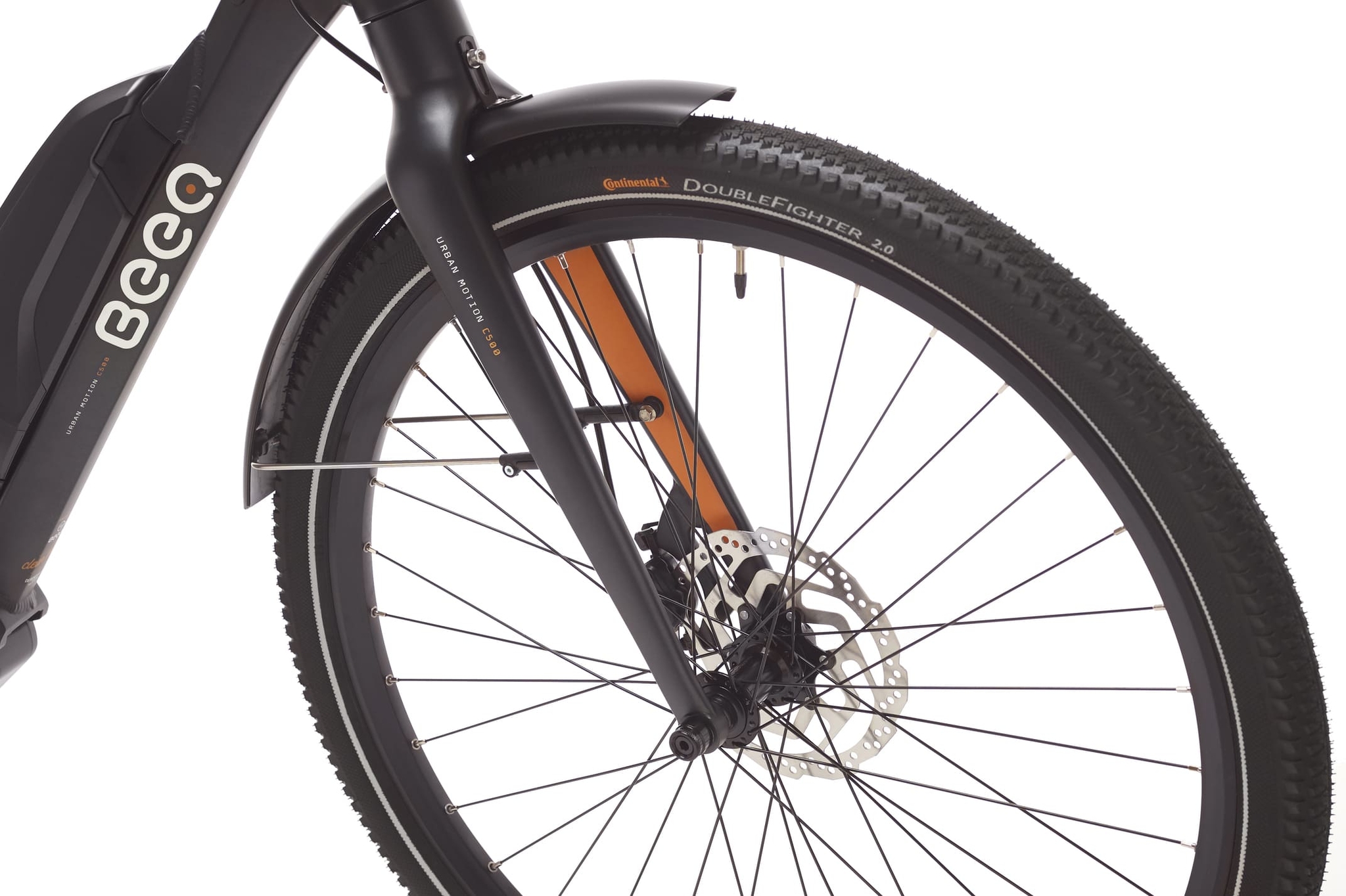

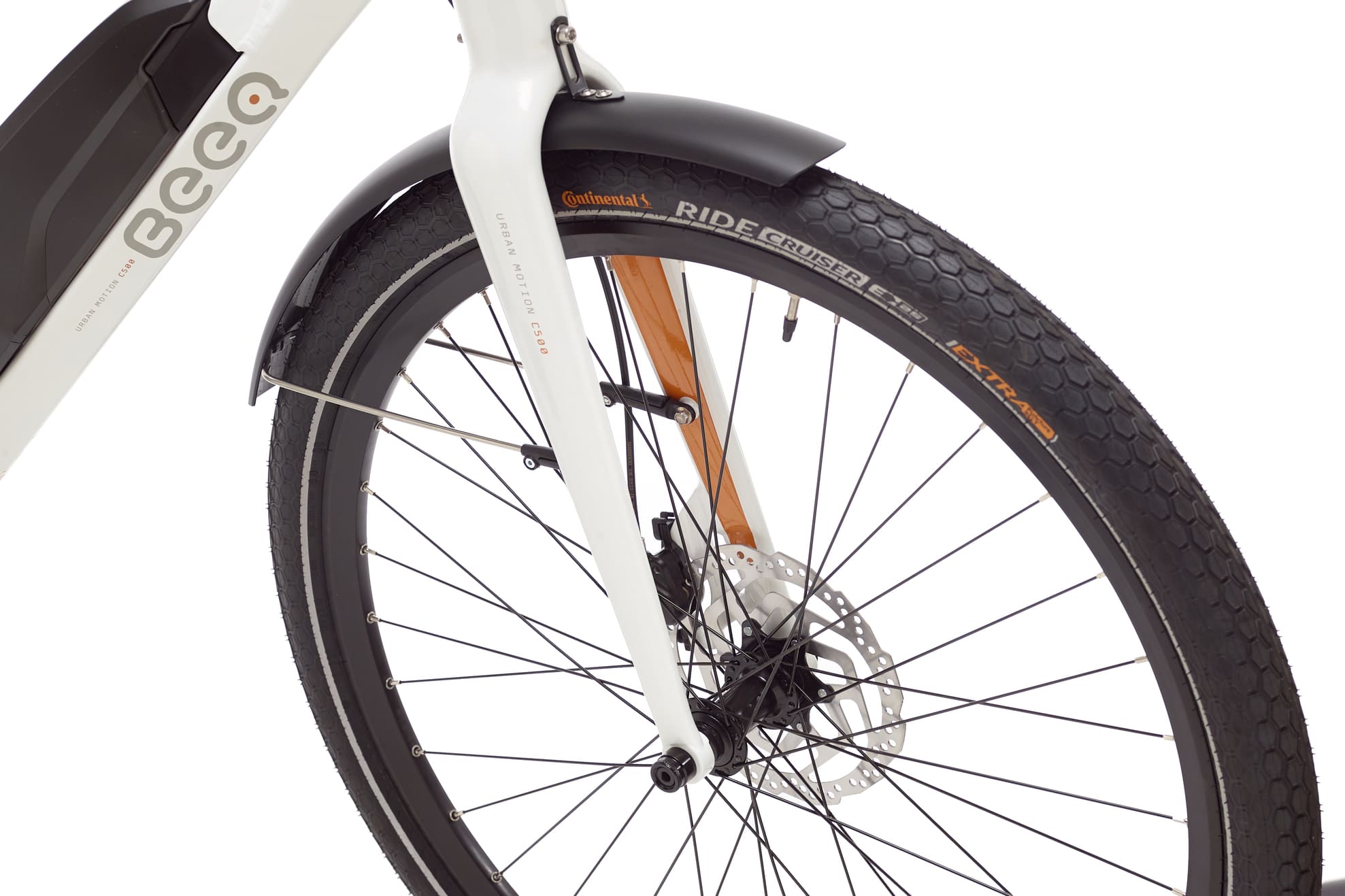

BUJE DELANTERO
SHIMANO HB-MT400 100 Thru-axle 15mm
- 36H
-15mm Thru Axle
- OLD 100mm
- For SHIMANO Centrelock discs
-15mm Thru Axle
- OLD 100mm
- For SHIMANO Centrelock discs
TRANSMISIÓN Y FRENOS
ROTOR DE FRENO - Delantero
SHIMANO SM-RT 180mm
ROTOR DE FRENO - Trasero
SHIMANO SM-RT 160mm
CAMBIO TRASERO
SHIMANO Altus 9S

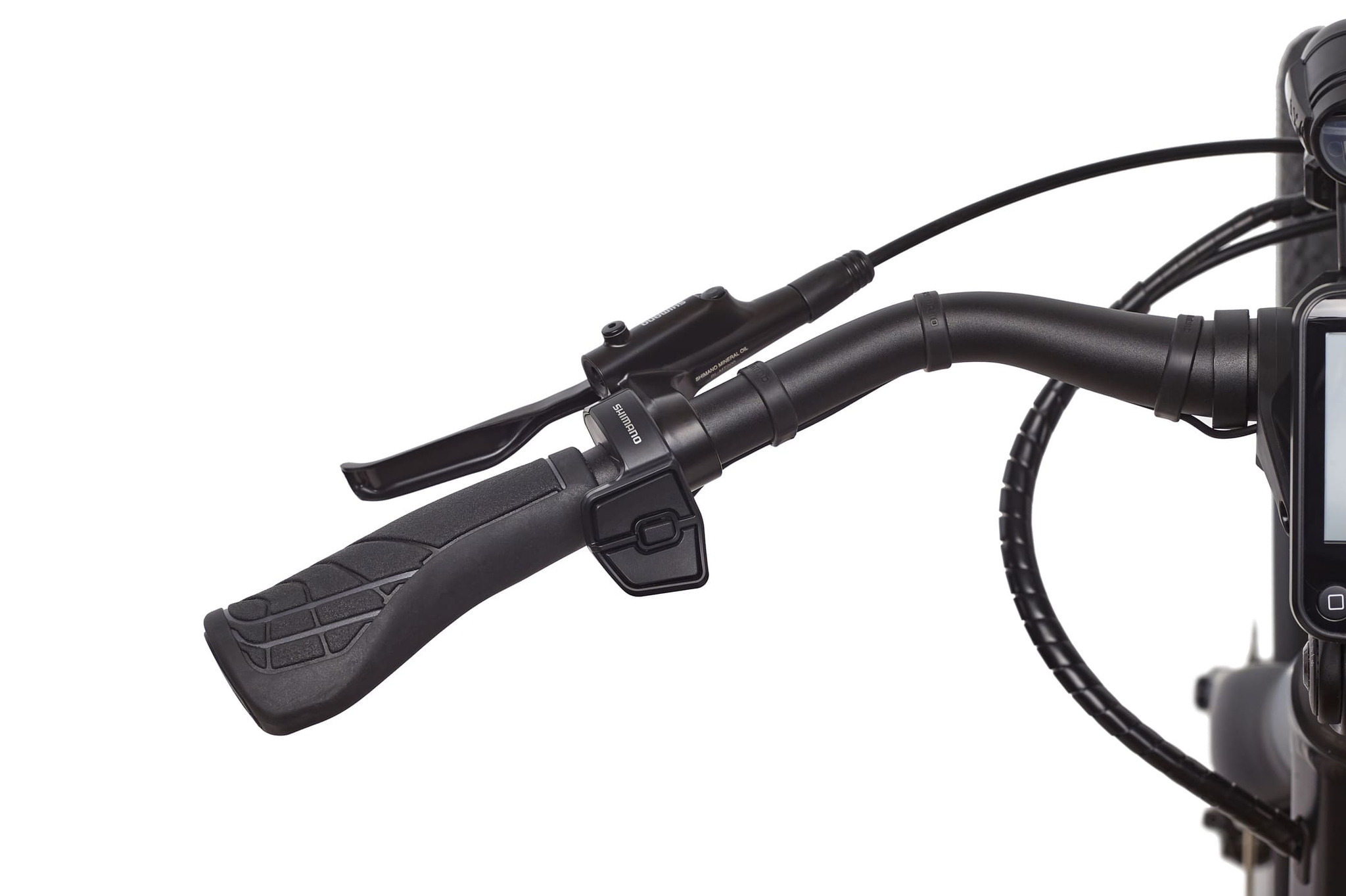

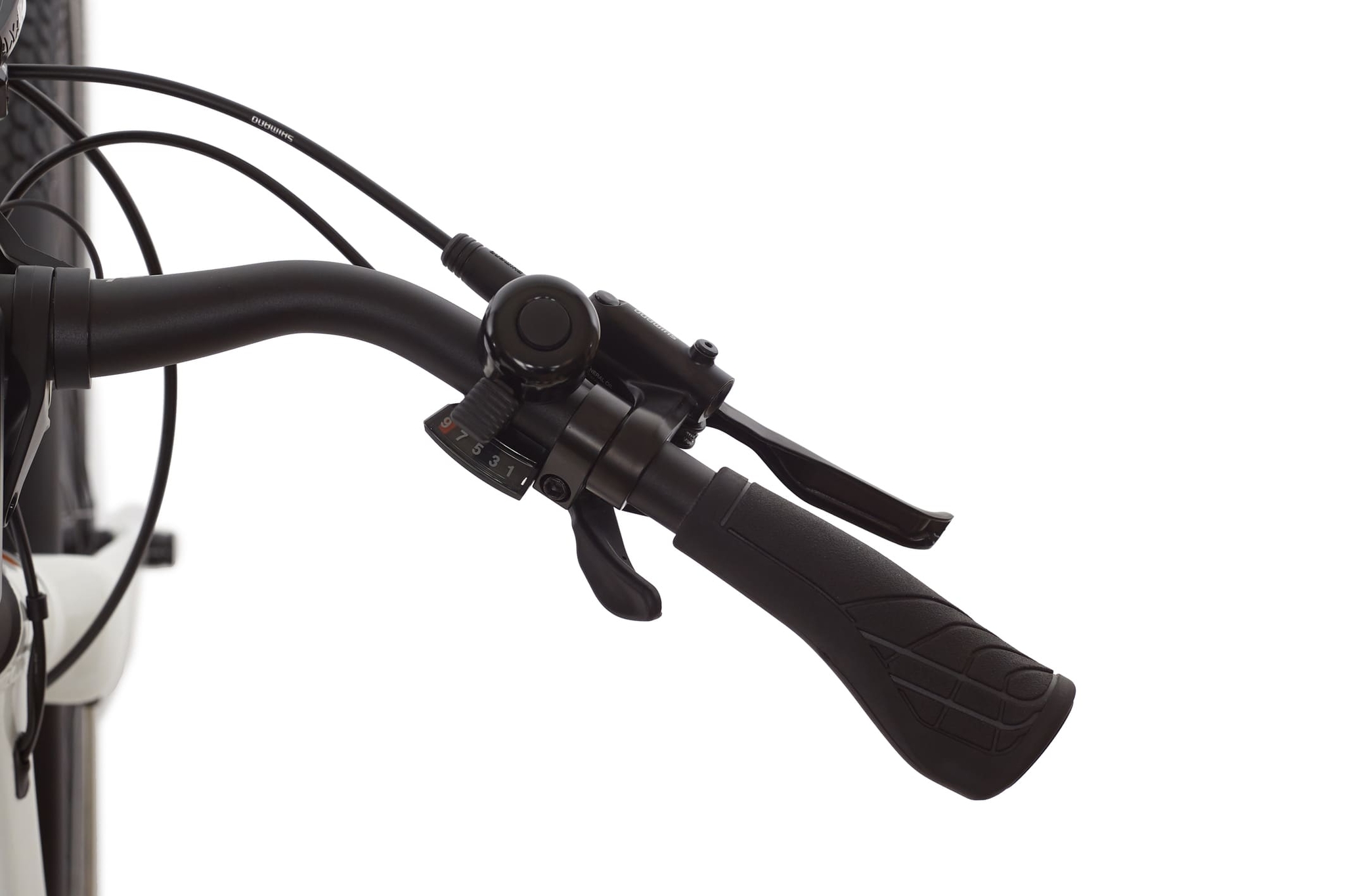

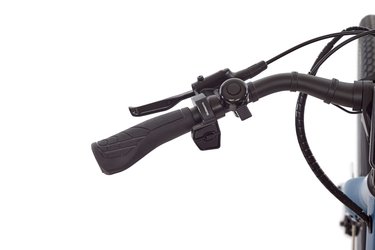

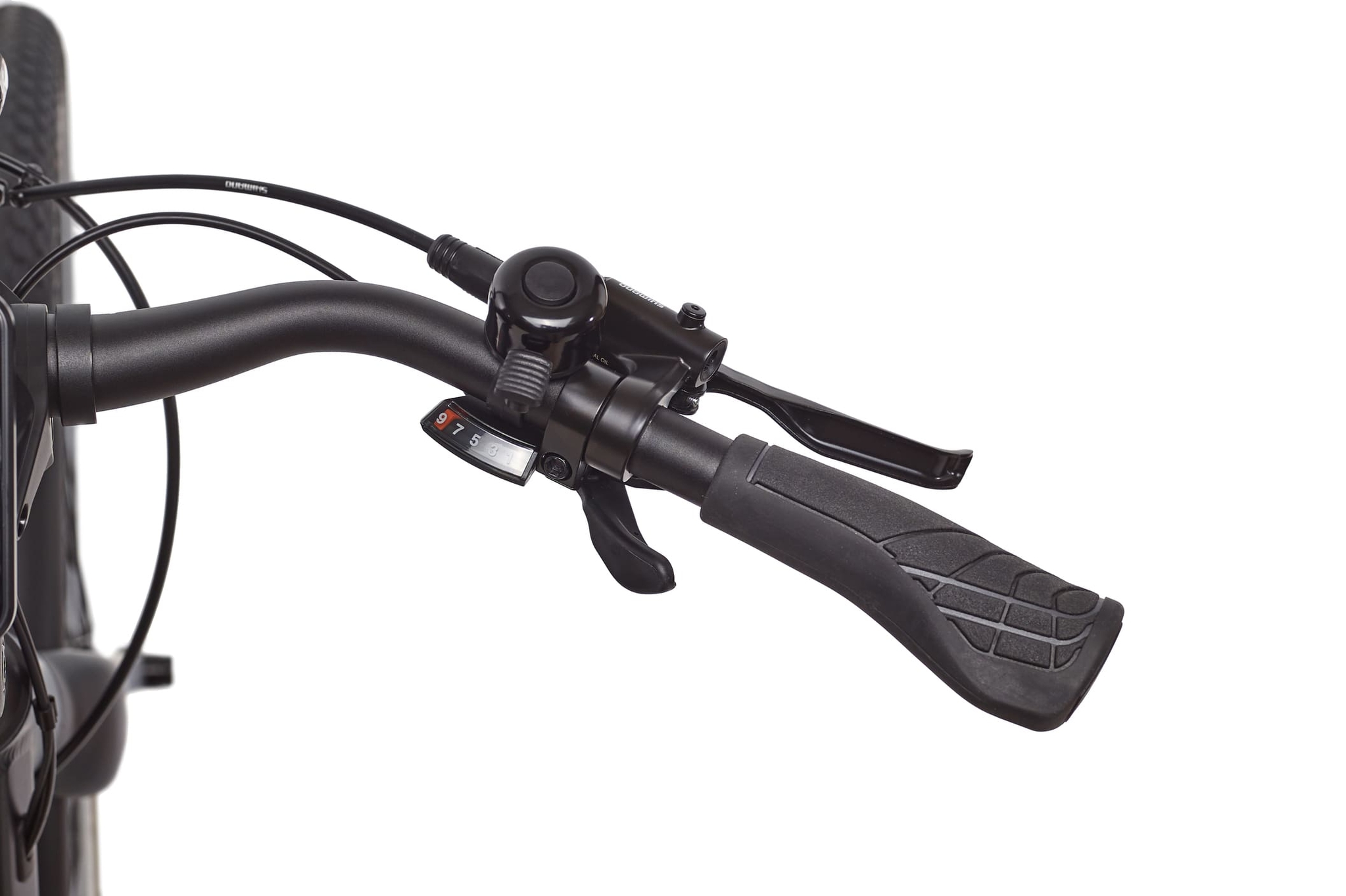

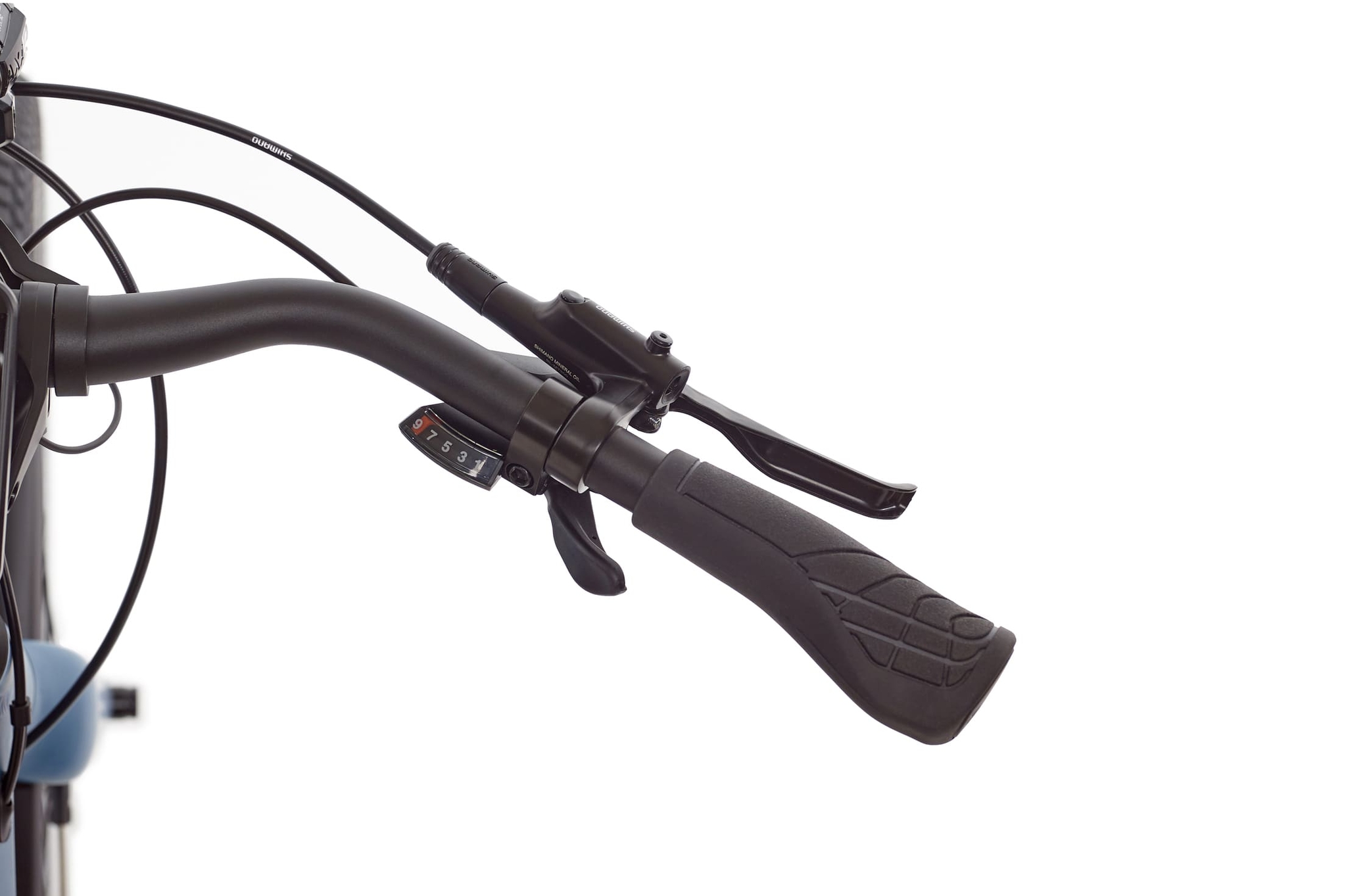

MANETA DE CAMBIO
SHIMANO Altus 9S
PLATOS
SHIMANO SN-CRE50 38T
BIELAS
SHIMANO FC-E5010 - 175
CHAIN
SHIMANO CN-HG53
GUÍA CADENAS
Si - SKS
SEGURIDAD Y ACCESORIOS

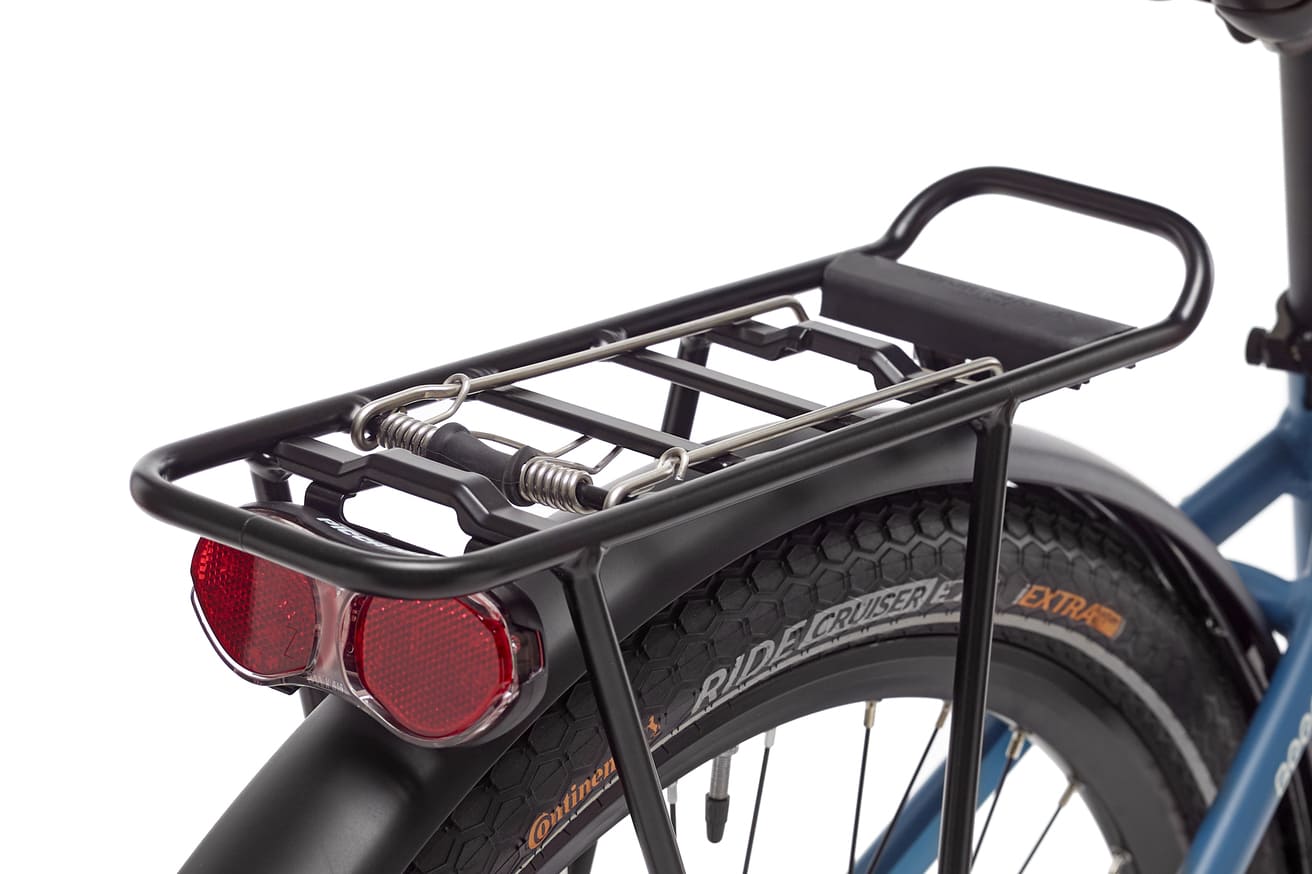

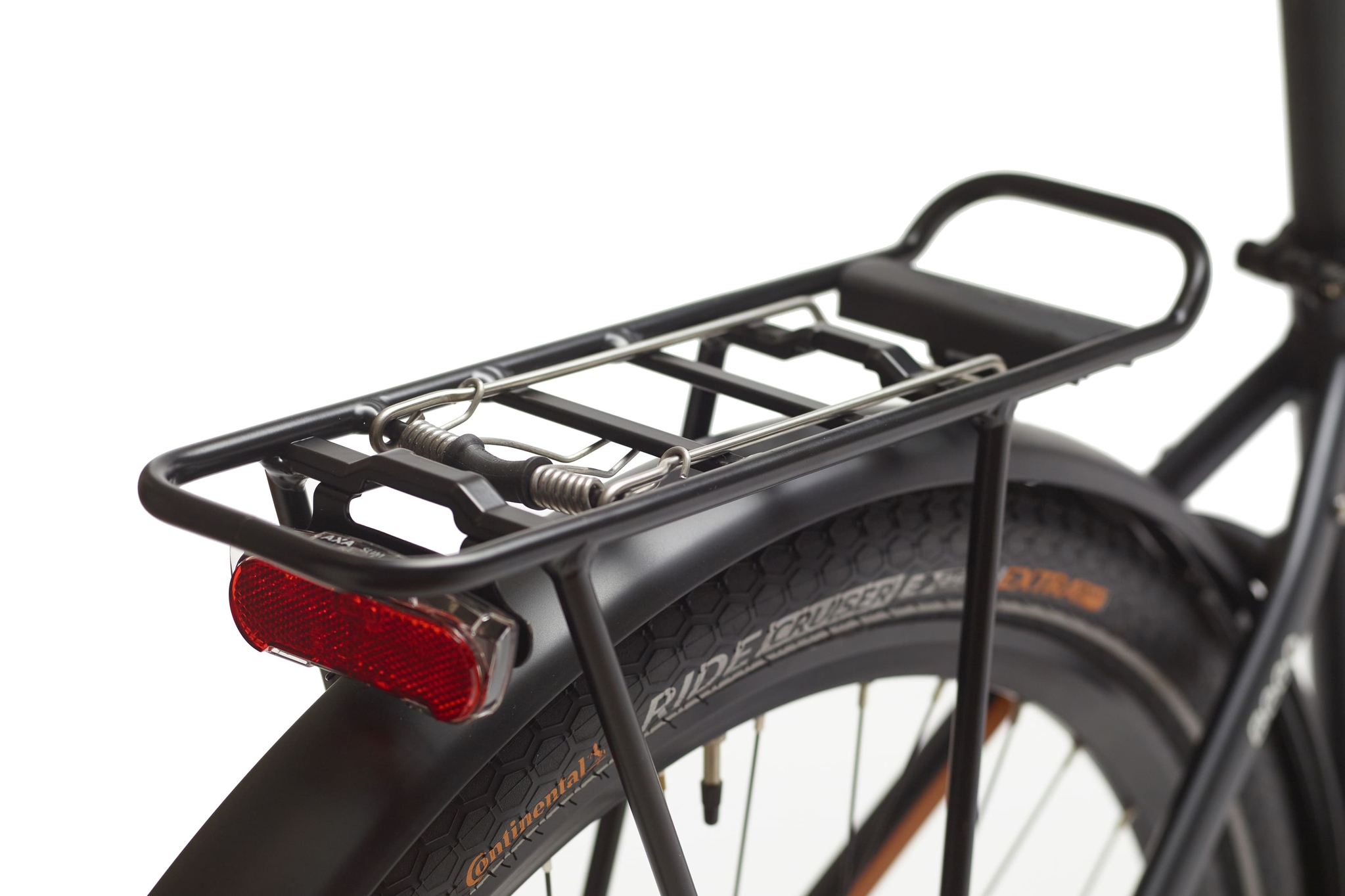

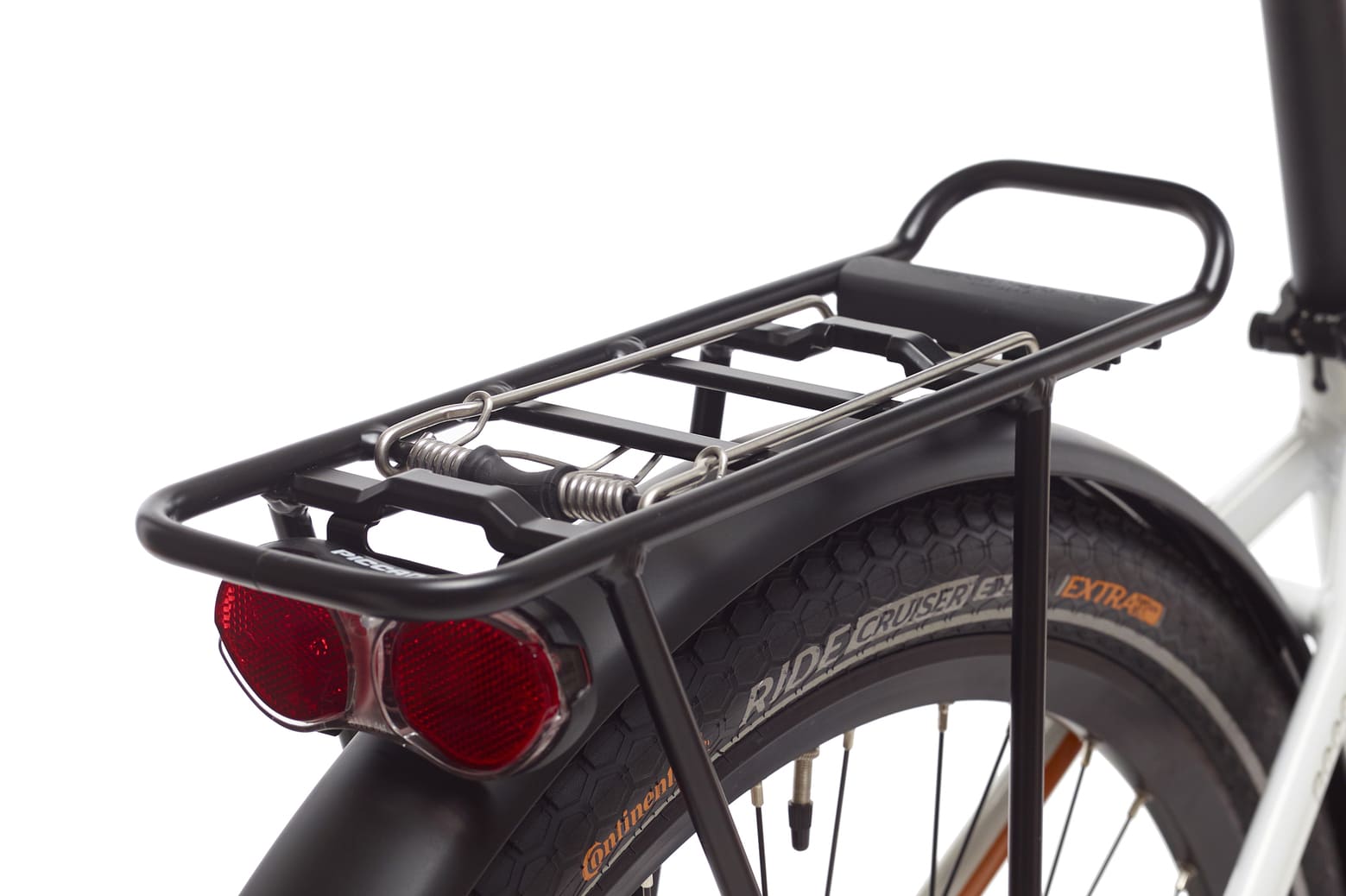

Portaequipaje
ATRANVELO Tour AVS (max.: 25Kg)

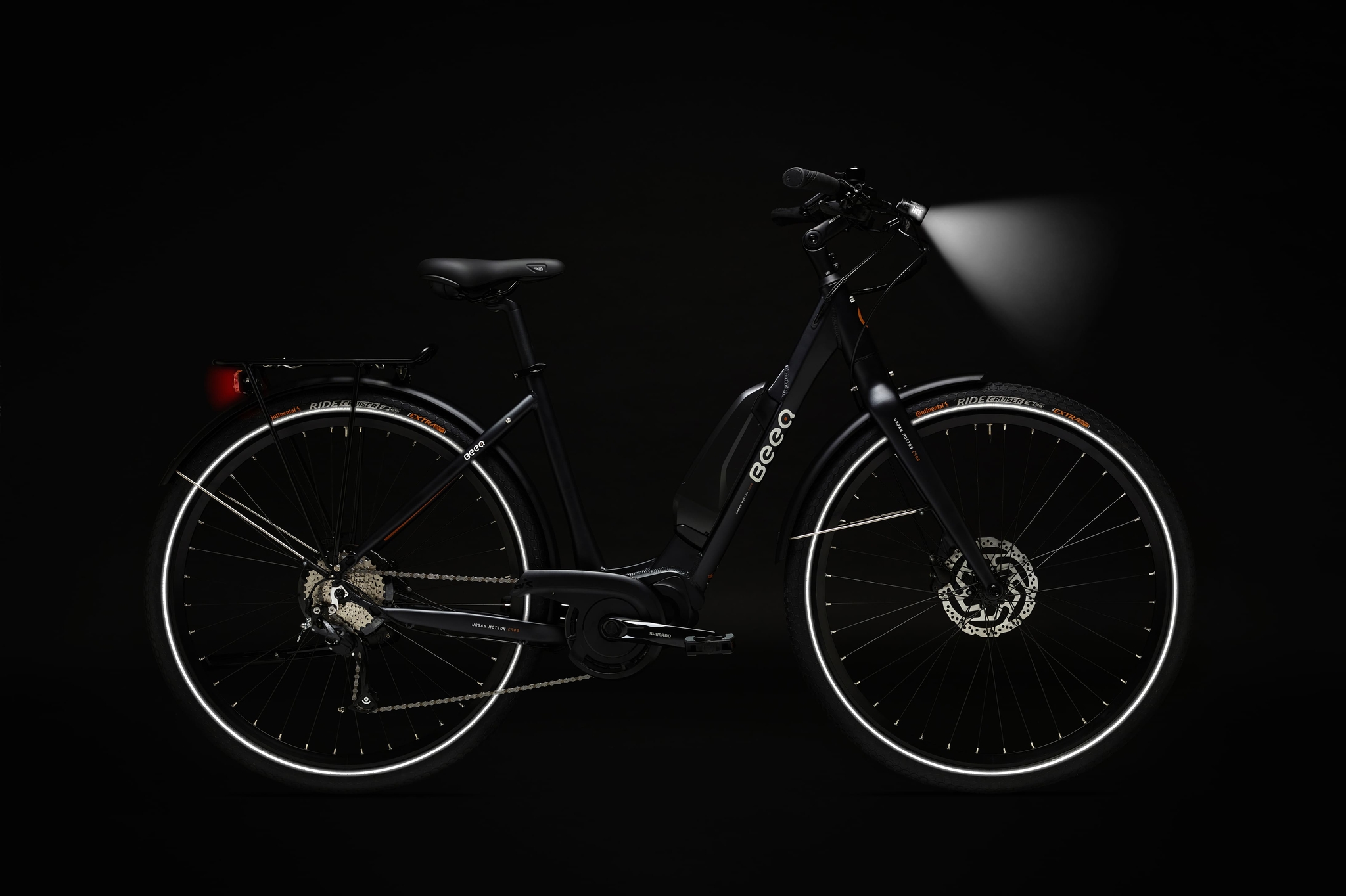

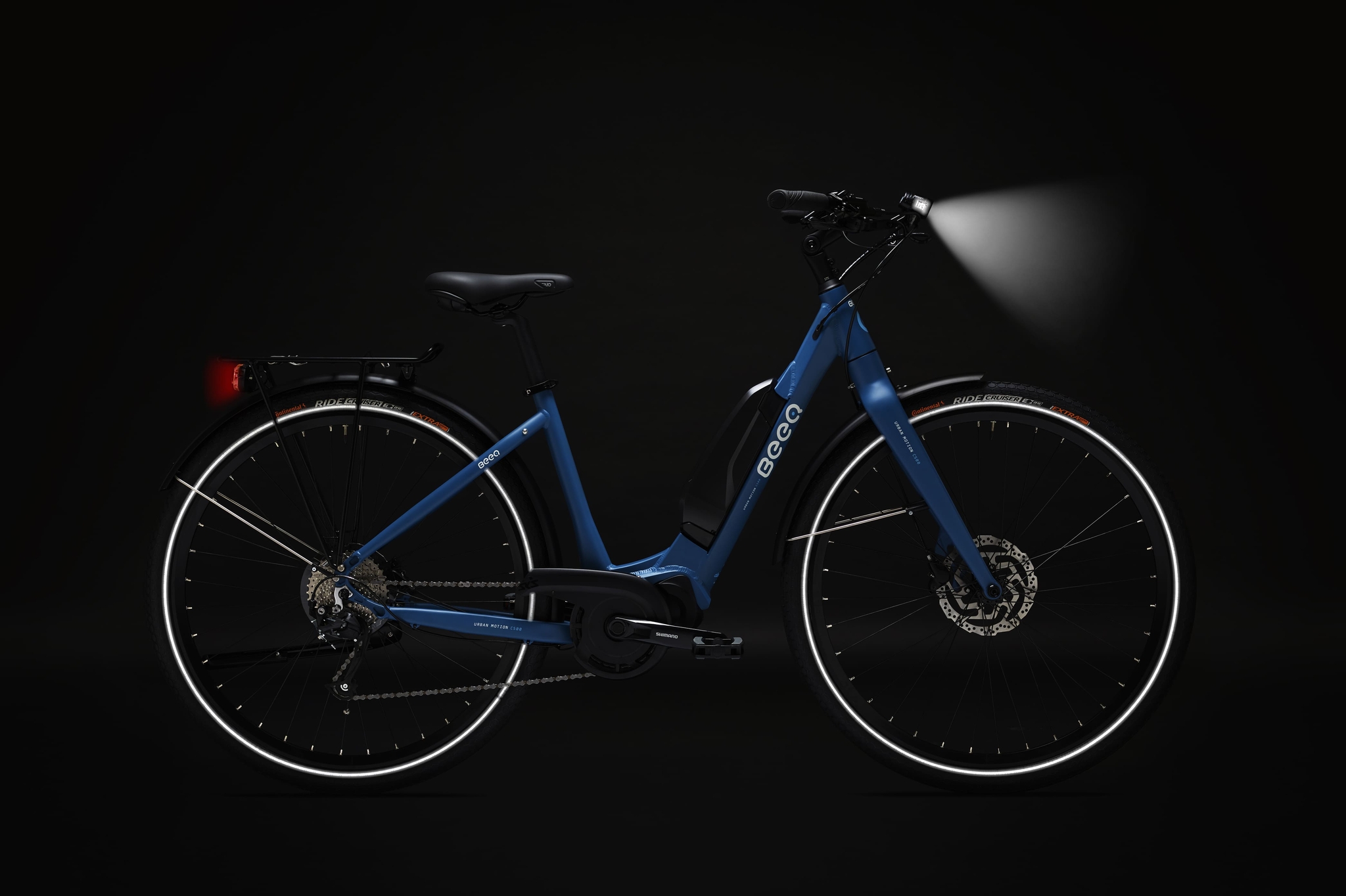

LUZ DELANTERA
AXA Blueline 30 with reflector
LUZ TRASERA
PICCADILLY with reflector
CABALLETE
ATRANVELO Dux
GUARDABARROS
SKS 60mm Plastic Black Matt with stainless steel stays
CAMPANA
Si
PORTABIDONES
Not included. Frame not prepared.

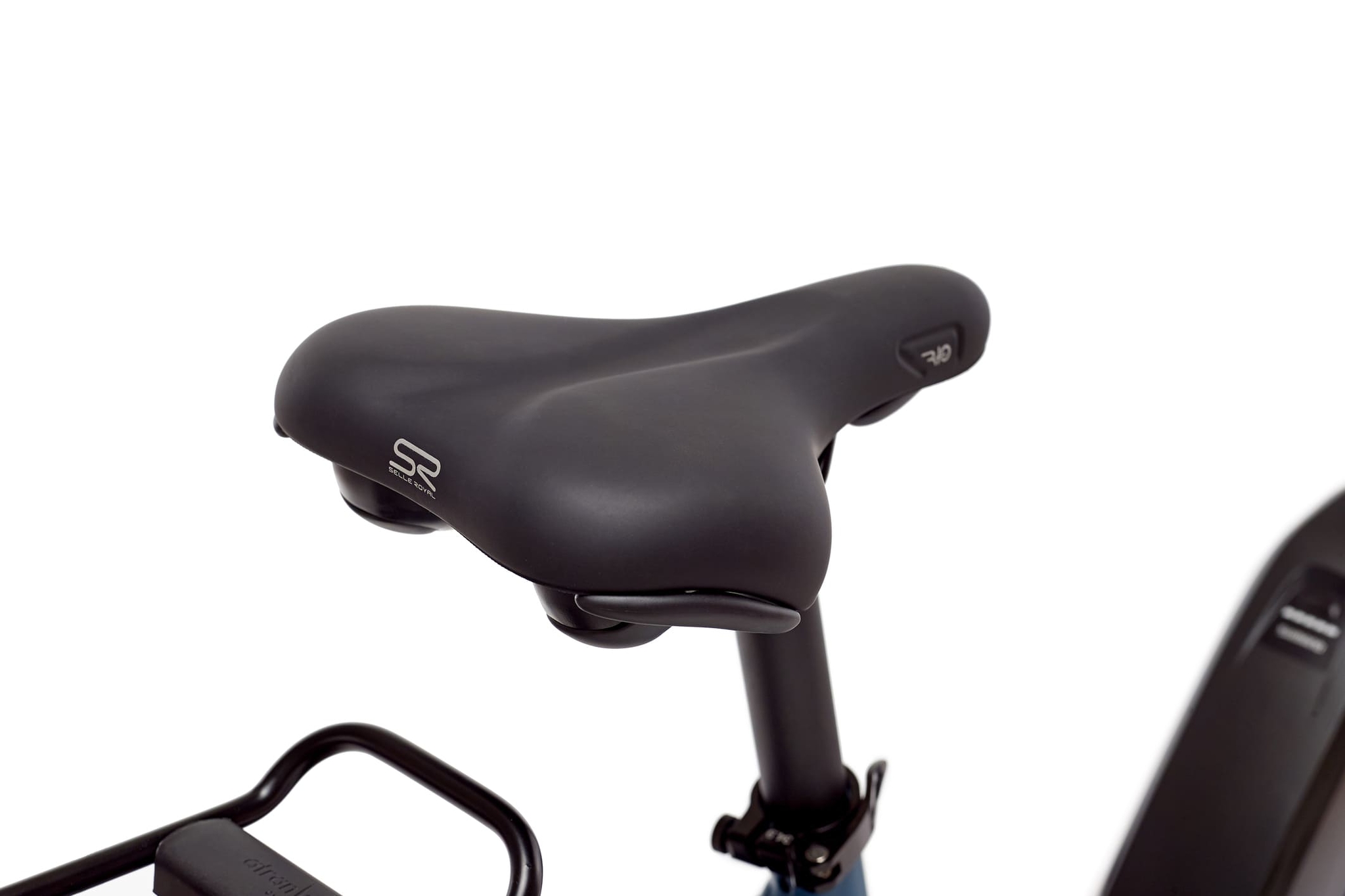

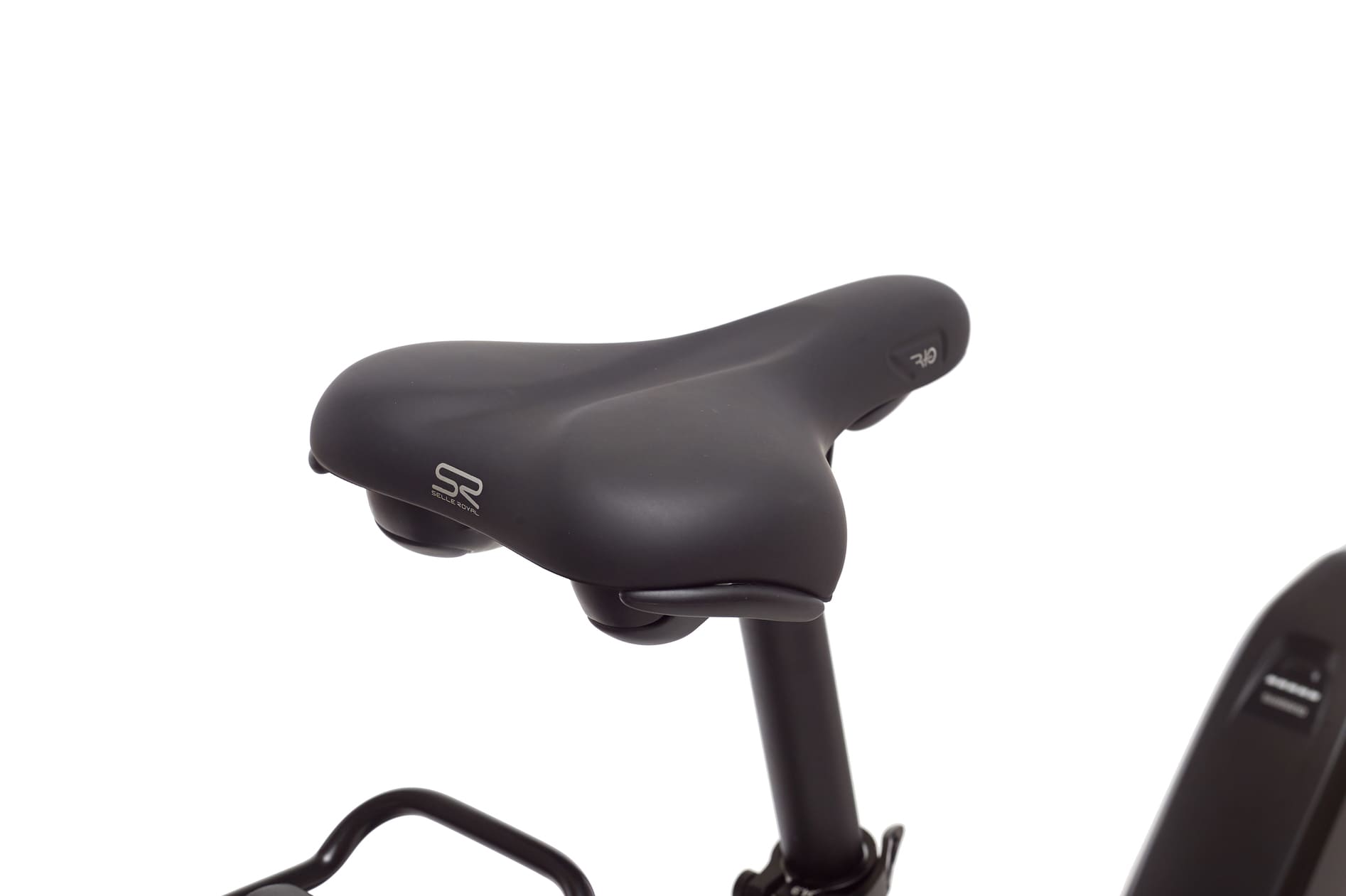

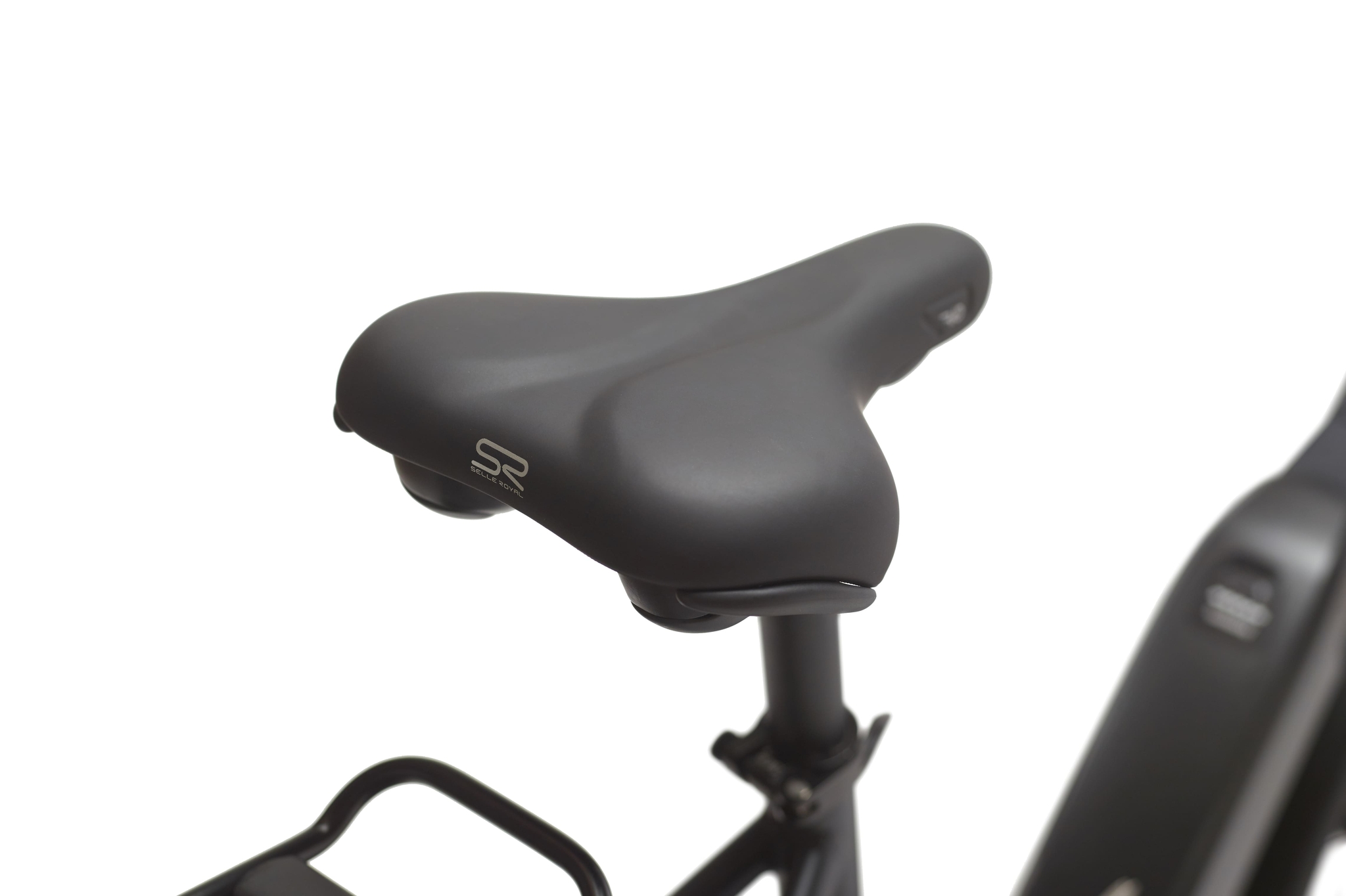

SILLÍN
SELLE ROYAL Rio Gel
PEDALES
UNION ball ring with "non-slip" and Reflectors
CERRADURA DEL MARCO
Not included. Sold separately.
